Quantifying human mobility resilience to extreme events using geo-located social media data

Increased population growth and interdependent infrastructure systems have made our cities and communities more vulnerable to extreme events [1, 2]. Natural disasters are responsible for a global $520 billion losses and moving 26 million people to poverty in every year [3]. To deal with such extreme events, a shift from reactive to pro-active policies focusing on disaster resilience is needed [4]. Resilience is commonly used to indicate the ability of a system or entity to return to its normal state after a disruption due to a disaster event [5]. Community resilience has been described as a process of linking to a network of adaptive capabilities that help to adapt after a disruptive event [6]. To assess resilience, depending on the fields and events, both qualitative [7–9] and quantitative [10–12] approaches exist. While it has been widely studied for physical infrastructure systems, resilience of socio-economic systems is hard to quantify. Human mobility is a key factor to understand the impacts of disasters to our social and economic activities since socio-economic development is strongly associated with mobility [13].

Human mobility analysis has drawn much attention in many research fields for its wide applications. Most of the studies have modeled mobility as probability distributions of the length of the traveled distance and the waiting time between any two displacements. Analyzing a wide range of data sets, studies have established that human mobility is not random rather it follows some specific patterns [14–17]. For instance, human mobility has been studied using large-scale trajectory datasets including bank notes [16], taxi data [18, 19], GPS observations [20], Wi-Fi [15], cell phone call recordings [21, 22], and social media posts [23–27]. These studies have found that mobility follows power-laws [14, 16, 18, 21, 22, 28–33], log-normal [19, 20], exponential distribution [34–39] or a combination of power-law and exponential distributions [35, 38].

During extreme events, human mobility goes through a significant perturbation compared to regular periods. People are less likely to move the same way in emergency situations, such as a hurricane, typhoon, earthquake and other natural or manmade extreme events, as they do in normal conditions. Understanding this perturbation will increase the effectiveness of disaster preparedness, information communication, reduce fatalities, and minimize economic losses [40, 41]. Despite its importance, few studies have investigated human mobility under disasters. Although studies have investigated how individuals behave during an extreme event [42–48], they are mainly based on post-disaster surveys with limited sample size. Based on these survey data, it is impossible to compare pre and post disaster human movements and measure mobility resilience at a system scale. Alternatively, analyzing mobile phone data Lu et al. [49] shows that the predictability of people’s trajectory remains high during the three month period after the earthquake in Haiti in 2010. Social media data can also offer a promising direction in observing human movements during extreme events. Guan et al. [50] proposed a method to track the dynamics of social and infrastructure networks using Twitter and taxi and subway operations data. However, this study mainly focuses on the dynamic nature of certain properties of the networks during a disaster without quantifying resilience of those systems. A method that can quantitatively measure perturbations and recovery times of human mobility will greatly impact disaster management as well as in policy making towards building disaster resilient infrastructures, communities, and cities.

While disaster resilience has been studied in many fields, quantifying human mobility resilience under disasters is still unexplored. Donovan et al. [51] have studied transportation system resilience for the New York City using taxi GPS data for multiple disasters. Recent studies [40, 41, 52] have shown that under disaster events human mobility goes through perturbation but still follows the same distributions similar to the ones in a steady state, and the shift in the center of mass and radius of gyration in a perturbed state are correlated with the steady state radius of gyration. Although, these studies have suggested that human mobility is somewhat resilient to disasters, a quantitative assessment of mobility resilience is still missing in the literature. Furthermore, these studies did not explore the expected correlations of mobility resilience across different types of extreme events.

However, measuring resilience, in a mobility context, has been difficult due to the lack of appropriate metrics over longer time periods. Geo-location data from social media can offer a solution to this problem. In this study, by analyzing user displacements from a pre-disaster period to a post-disaster one, we measure perturbation and recovery time for multiple types of disaster. To validate our results, we have used one-month of taxi data from the New York City recording taxi movements before, during, and after hurricane Sandy. Quantifying the loss of resilience and recovery time from disruptions in response to an extreme event can help understanding the broader socio-economic impacts of disasters. Furthermore, these resilience metrics will help in making policy towards building resilient cities and communities.

This paper makes several contributions. First, it defines the concept of mobility resilience and develops methods to detect extreme events in mobility data and to measure required metrics to measure resilience and transient loss of resilience from movement data. Second, it applies the proposed method of measuring resilience to geo-located data collected from Twitter for multiple disasters. Thus, this paper shows that geo-located social media data can be effectively used to measure human mobility resilience to extreme events.

To validate our approach of using social media data, we collected New York City taxi data which includes taxi movement for the period same as the hurricane Sandy twitter data. The data was collected from a repository hosted by New York City Taxi and Limousine Commission (http://www.nyc.gov/html/tlc/html/about/trip_record_data.shtml). In the data, each observation represents a trip and there were total 12,892,877 trips in the study period.

Hurricane Sandy data have tweets from several places including USA, Canada, Mexico and other countries. For measuring resilience for a city or a state in response to hurricane Sandy, we have applied appropriate location filters. For example, a trip can be made within the New York City or having only an origin or destination in it. Since displacements are calculated in six-hour periods, when calculating resilience for the New York City, if a location filter is applied, only the displacement within the New York City will be considered in a six-hour period. If a location filter is not applied, both displacements within the New York City and having origins or destinations at the New York City will be considered in a six-hour period. Except hurricane Sandy data, the rest of the data consist city-specific tweets where those cities were subject to a disruptive event. Thus, a location filter or constraint is not required for these cases.

In this study, we apply the concept of resilience for understanding human mobility under a disaster. Following the basic definition of resilience, we define mobility resilience as the ability of a mobility infrastructure system responsible for the movement of a population to manage shocks and return to a steady state in response to an extreme event. These events include a hurricane, earthquake, terrorist attack, winter storm, wildfire, flood, and others. We propose a simple method based on human movement data using normalized per user displacement as a key indicator of human mobility. Comparing the difference between per user displacements from typical displacements, the proposed method can detect a disruptive event from movement data and calculate the maximum deviation from normal conditions and the recovery time. Finally, applying the concept of resilience triangle, we estimate resilience and transient loss of resilience for an event detected by the method. The proposed method can take any kind of movement data as inputs including coordinates from mobile phone call recordings, GPS observations, social media posts and many others. In this paper, we present our resilience analysis based on social media data from multiple types of disasters.

2.5 Resilience calculation

Once an extreme event has been detected, maximum deviation and recovery time can be easily calculated. We define human mobility resilience as the ability of a mobility infrastructure system responsible for the movement of the population of a community to manage shocks and return to a steady state in response to an extreme event. Bruneau et al. [10] introduced an equation for calculating resilience loss as shown in Equation (1). As applied to infrastructures of a community, Bruneau’s equation [10] computes the loss of resilience by the size of degradation of the expected quality of an infrastructure over time. But community resilience as a whole should be calculated with respect to all the extreme events possible. When applied to people and its environment, Norris et al. [6] used the term resilience as a metaphor where a transient dysfunction occurs during a crisis due to the degradation of quality of life. A resilient community can adapt to the situation after the event while a vulnerable community goes through a persistent dysfunction [6]. Here, using Bruneau’s approach, we calculate the loss of resilience which is equivalent to the size of dysfunction/degradation of human mobility. But mobility resilience represents a long-term property of a community in response to all the possible crisis events. Since we determine the loss of resilience in response to a single crisis only, we call the size of the degradation as the transient loss of resilience, defined as:

$$\text{Transient loss of resilience}, \mathrm{TLR}= \int_{t_{0}}^{t_{1}} \bigl[100-Q ( t ) \bigr]\,dt, $$

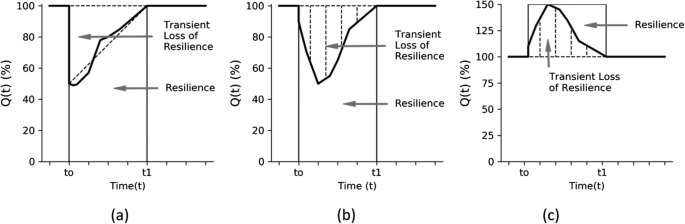

where, TLR is the transient loss of resilience which is the area (see Fig. 1(a)) between the horizontal line from 100 and the quality curve Q(t) from \(t_{0}\) to \(t_{1}\) which is the recovery period for any event.

A schematic representation of this equation (see Fig. 1(a)) is known as a resilience triangle. From this triangle, the transient loss of resilience in any extreme event can be calculated as the area formed by the dashed lines and the vertical line (see Fig. 1(a)). Inspired from the resilience triangle, we represent the resilience by dividing this area into smaller trapezoids (see Fig. 1(b) and 1(c)) having height equal to the increment of time (six hours) considered in the analysis. This assumption is required since, unlike an idealized quality function, a real-world quality function indicating human mobility gradually drops from and improves to its typical values. Thus, assuming smaller trapezoids will minimize the loss in calculation.

In our analysis, we assume human mobility level as a proxy of the quality of the mobility infrastructure system. Thus, we define \(Q(t)\) as the ratio of average actual displacements to average typical displacements of a population at a time period t. If an actual displacement is equal to a typical displacement, the value of the quality function is 100 or the ratio is 1. In our case, \(Q(t)\) at a period t represents how much different the level of human mobility is compared to a typical value of the level of human mobility at the same period before the disaster. We obtain the recovery time (\(\mathrm{t}_{0}\) to \(\mathrm{t}_{1} \)) (see Fig. 1) from the extreme event detection phase. Here, \(\mathrm{t}_{0}\) is the starting point of the detected extreme event and \(\mathrm{t}_{1}\) is the end point of the detected event. The duration between \(\mathrm{t}_{0}\) and \(\mathrm{t}_{1}\) is the recovery time. The summation of the areas of all the small trapezoids is the transient loss of resilience (indicated by transient loss of resilience in Fig. 1(b) and 1(c)). The residual area (indicated by resilience in Fig. 1) represents the value of resilience during the recovery period. For increased mobility area considered in resilience calculation are defined by the maximum quality percentage/ratio (see Fig. 1(c)).

The selection of the thresholds on α and τ have effects on event detection and resilience calculation. For a given α value, the threshold on τ determines whether a deviated state of human mobility will be considered as a disruptive event or not. But once an event is detected, τ has no effect on the calculated resilience value. The selection of α threshold will directly affect the duration of an event which affects the resilience calculation. For instance, bigger \(\alpha_{u}\) and smaller \(\alpha_{l}\) will reduce the duration of an event and hence calculated resilience loss will be less. Although the resilience calculation depends on the selection of the thresholds, the ranking of events with respect to resilience will not change given that the same threshold value is chosen for all the events.

When interpreting the resilience and transient loss of resilience values, we should consider certain aspects of the resilience metric. At a fundamental level, the proposed resilience metric measures the impact of a disruption to the mobility of a population and its infrastructures. The greater the impact of a disruption has on human mobility, the greater the transient loss of resilience will be. We consider both the increase and decrease of mobility level similarly, through calculating transient loss of resilience, since both situations indicate impacts to the typical level of population mobility. However, loss of resilience calculated from decreased mobility should not be compared with the same due to increased mobility. For increased mobility, our resilience calculation is limited as we have an unbounded scenario (see Fig. 1(c)). Furthermore, an increased mobility does not necessarily indicate a better performance of the mobility infrastructure system. It is more likely that in such a situation the infrastructure system has collapsed forcing people to displace further.

The approach to calculate resilience has been applied over location-based social datasets (see Table 1). During these events, we observe two types of responses in the mobility function which either significantly drops (decreased mobility) or significantly rises (increased mobility). To represent both types of events, two thresholds z scores (α values) have been used for detecting an extreme event. For decreased mobility cases, a threshold z score value of 40 percentile (\(\alpha_{l} =40\)) and for increased mobility cases, a threshold z score of 90 percentile (\(\alpha_{u} =90\)) have been chosen to detect an extreme event. However, when no event was detected with these thresholds, \(\alpha_{l} =60\) percentile have been chosen; this relaxes the lower threshold of z score. As the threshold duration of the extreme event when the z value is below \(\alpha_{l}\) has been chosen as 7 time periods (i.e., \(\tau=7\) or 42 hours) and when the z value is above \(\alpha_{u}\) has been chosen as 3 time periods (i.e., \(\tau=3\) or 18 hours).

Figure 2 shows the major steps in calculating resilience for three types of disasters namely: Hurricane Sandy (Fig. 2(a)), earthquake at Bohol (Fig. 2(b)) and a thunder storm at Phoenix, Arizona (Fig. 2(c)). Table 2 presents the results of resilience calculation for multiple types of disasters along with the threshold values used to detect the events. Events detected by 60 percentile thresholds are not comparable with the events detected by 40 percentile thresholds. The 40 percentile events are more severe than the 60 percentile events. Among 40 percentile events, the highest recovery time was found 144 hours for hurricane Sandy for the state of New York and the highest transient loss of resilience was found 344.89 for earthquake Iquique. We have also calculated the ratio between transient loss of resilience and resilience \(( \frac{\mathrm{TLR}}{R} )\). The highest ratio of resilience loss over resilience has been found as 2.73 for the state of New York for hurricane Sandy. Among the 60 percentile events, the state of New Jersey during hurricane Sandy had the highest recovery time, transient resilience loss and transient loss of resilience over resilience ratio. These metrics indicate the magnitude of the impact of hurricane Sandy on the mobility systems of the sates of New York and New Jersey.

Disaster Name	Location	Threshold Z Score	Location Filter	Start Time	Recovery Time (hr.)	Max Deviation	Resilience (R)	Transient Loss of Resilience (TLR)	Ratio (TLR/R)
Sandy	New York City	\(\alpha_{l}=60\)	Y	2012-10-26 00:00	132	0.540	106.730	19.260	0.181
		\(\alpha_{l}=40\)	N	2012-10-28 12:00	66	0.010	17.620	42.370	2.404
	New York State	\(\alpha_{l}=40\)	Y	2012-10-28 12:00	48	0.260	21.860	20.100	0.920
		\(\alpha_{l}=40\)	N	2012-10-28 06:00	144	0.087	36.400	101.400	2.730
	New Jersey State	\(\alpha_{l}=60\)	Y	2012-10-28 00:00	120	0.176	52.000	55.00	1.057
		\(\alpha_{l}=60\)	N	2012-10-27 12:00	168	0.001	21.179	140.820	6.648
				2012-11-06 00:00	48	0.018	8.907	33.090	3.715
	Pennsylvania State	\(\alpha_{l}=60\)	Y	2012-10-28 00:00	120	0.180	58.930	49.060	0.833
		\(\alpha_{l}=60\)	N	2012-10-26 06:00	144	0.003	12.600	125.390	9.949
				2012-11-02 06:00	72	0.015	13.970	52.026	3.720
Earthquake	Bohol, Philippines	\(\alpha_{u}=90\)	NA	2013-10-15 00:00	54	9.330	120.470	162.310	1.340
				2013-10-19 18:00	24	11.035	64.956	115.680	1.780
	Iquique, Chile	\(\alpha_{u}=90\)	NA	2014-04-02 18:00	48	38.167	519.058	344.890	0.664
	Napa, USA	\(\alpha_{u}=90\)	NA	2014-08-23 18:00	18	6.416	27.490	37.503	1.360
Wild Fire	NSW1, Australia	\(\alpha_{u}=90\)	NA	2013-10-18 12:00	18	8.257	58.860	28.230	0.480
		\(\alpha_{l}=40\)	NA	2013-10-19 06:00	48	0.188	22.440	19.550	0.870
	NSW2, Australia	\(\alpha_{l}=40,60\)	NA	NO TLR
Winter Storm	Xaver, Norfolk, Britain	\(\alpha_{l}=40\)	NA	2013-12-02 12:00	48	0.339	25.370	16.629	0.655
	Xaver, Hamburg, Germani	\(\alpha_{l}=40\)	NA	2013-12-04 18:00	48	0.035	24.817	17.182	0.690
		\(\alpha_{u}=90\)	NA	2013-12-13 12:00	36	4.306	55.704	43.480	0.780
	Atlanta, USA	\(\alpha_{l}=40\)	NA	2014-01-28 12:00	54	0.261	20.450	27.545	1.346
Rain Storm	Phoenix, USA	\(\alpha_{l}=40\)	NA	2014-09-06 18:00	60	0.329	40.000	13.000	0.413
	Detroit, USA	\(\alpha_{l}=40\)	NA	Not Enough Pre-Disaster Data
	Baltimore, USA	\(\alpha_{l}=40,60\)	NA	NO TLR
Typhoon	Wipha, Tokyo, Japan	\(\alpha_{l}=40,60\)	NA	NO TLR
	Halong, Okinawa, Japan	\(\alpha_{l}=40\)	NA	2014-07-29 06:00	96	0.616	74.000	10.000	0.135
	Kalmaegi, Philippines	\(\alpha_{l}=40\)	NA	2014-09-08 12:00	96	0.005	42.568	42.000	0.990
		\(\alpha_{l}=40\)		2014-09-23 12:00	54	0.003	24.188	23.811	0.980
	Rammasun, Philippines	\(\alpha_{l}=40,60\)	NA	NO TLR

Note: NA = Not Applicable, Y = Yes, N = No.

In addition to Twitter data, we have used taxi trips data to calculate the resilience metrics. Figure 2(d) shows the resilience and recovery time for taxi movements in the New York City. For measuring resilience in taxi data, taxi trips have been used instead of the taxi trip distance. Most of the trips in taxi occurred between some frequently visited places and thus, the average traveled distances per trip were almost same for the disrupted days although there were significantly less number trips in those days. For taxi trips, the maximum deviation at the landfall day is found as 0.052 which means only 5.2 percent of the typical trips occurred at the landfall day of hurricane Sandy; the recovery time is found 96 hours. A recent study [51] measuring transportation system resilience by taxi data using pace as a quality indicator found recovery time as 132 hours for hurricane Sandy. From Table 2, we can see that human mobility recovery time and transient loss of resilience for New York city is 66 hours and 42.37, respectively. The two results between taxi resilience and human mobility resilience is not directly comparable because taxi is just one of the modes of human mobility.

During hurricane Sandy, among the states, the state of New York suffered the highest transient loss of resilience followed by the states of New Jersey and Pennsylvania. For hurricane Sandy both recovery time and transient loss of resilience are higher when a location constraint is not applied. Except hurricane Sandy data, typhoon, winter storm and rain storm data are location constrained. Thus, transient losses of resilience for these events are lower compared to hurricane Sandy’s unconstrained transient loss of resilience. This finding is consistent with previous findings [52] that during these types of disasters, short trips are less affected compared to long trips. These events discussed above faced a significant amount of decrease in mobility from a typical mobility function.

However, in an earthquake, instead of a decreasing mobility function, we observe a significant increase in human mobility, probably due to the long-distance migration of people forced by severe infrastructure damages. Figure 2(b) shows the resilience calculation for an earthquake happened at Bohol, Philippines in 2013. The recovery time and transient loss of resilience for this event are 54 hours and 162.31, respectively. Our method has detected one more event after around 3 days. This event may represent the increased mobility when displaced people returned to their places as studies found that natural disaster like earthquake cause human migration. Table 2 shows the other earthquake resilience and recovery time results. Among the earthquakes analyzed in this study, Iquique had the highest deviation and transient loss of resilience, 38.167 and 344.89, respectively and Napa had the lowest transient loss of resilience and deviation. A study [41] on the same data for measuring human mobility pattern found that although human mobility during most of typhoon, rainstorms, winter storms and Napa earthquake can be predicted by established patterns, mobility during earthquakes Bohol and Iquique cannot be predicted. Instead of decreased mobility, a significant increase in mobility with large transient loss of resilience during these events may explain this result.

In this paper, we present a method to compute resilience metrics using geo-location data from social media. The proposed method can detect an extreme event from human movements, measure the recovery time and the maximum deviation from a steady state mobility indicator, and assess the values of resilience and transient loss of resilience. Applying this method on multiple disaster data, we find that human movements within a geographic area (e.g., trips only within a city) is less affected compared to all the movements associated with the area (e.g., trips from, to, and within the city). Disasters such as hurricane, typhoon, winter storm decrease human mobility and the amount of perturbation depends on the location and severity of the disaster. However, an earthquake increases human mobility causing a significant transient loss of resilience. This is probably because an earthquake is unpredictable while for the other disasters people had warnings lasting over multiple days.

The findings of this study are very important for understanding the nature and amount of perturbation and the subsequent transient loss of resilience in human mobility due to a disaster. Thus, it will help understanding the higher-order impacts of a disruptive event in human society and national economy. It can also help in policy making, as resilience assessment is critical for building a resilient transportation system.

However, there are some limitations in the metric used here. We do not have any measurement of at what levels the infrastructure should be performing before a disruption and after the recovery efforts. Therefore, we assume the pre-disruption mobility level as a proxy of infrastructure quality and expect that after recovery population mobility should reach to the pre-disruption level. We also assume that the pre-disruption mobility level is the best possible condition (100%). This may not be true as a community may not have access to proper mobility infrastructures even before a disaster. Furthermore, after the recovery activities, mobility level may not return to its optimal condition. The proposed metric cannot detect events less than six hours long because a minimum period of six hours is chosen. Also, in a pre-disaster period, variations among weekdays and variations between weekend days are not considered due to the lack of enough pre-disaster data. Movements of social media users may not represent well the actual population movement during a disaster.

Quantifying mobility resilience is difficult due to its complex interactions with many interconnected systems. We choose a simple metric from [10] to determine transient resilience loss in mobility due to an extreme event so that the approach can be applied to different types of disasters without considering many dimensions. This study is one of the first empirical studies to quantify mobility resilience from mobility data. Availability of comprehensive infrastructure and mobility data will lead to a more robust and complete resilience metric.
