Abstract

Pattern detection in network models provides insights to both global structure and local node interactions. In particular, studying patterns embedded within remittance and migration flow networks can be useful in understanding economic and sociologic trends and phenomena and their implications both in regional and global settings. We illustrate how topo-algebraic methods can be used to detect both local and global patterns that highlight simultaneous interactions among multiple nodes, giving a more holistic perspective on the network fabric and a higher order description of the overall flow structure of directed networks. Using the 2015 Asian net migration and remittance networks, we build and study the associated directed clique complexes whose topological features correspond to specific flow patterns in the networks. We generate diagrams recording the presence, persistence, and perpetuity of patterns and show how these diagrams can be used to make inferences about the characteristics of migrant movement patterns and remittance flows.

Introduction

Migration and remittances have become important facets of modern human society. The United Nations’ Department of Economics and Social Affairs (UNDESA) reports that the total number of international migrants, defined as foreign-born or foreign citizens for the purpose of estimation, has continued to grow rapidly from year 2000 to year 2015 at a rate faster than that of the world’s population. Many published reports, such as UNDESA’s [1] and World Bank’s [2], provide comprehensive statistical descriptions and forecasts on world migration and remittances. These, however, tend to focus on statistics about direct and specific region-region interactions: origin and destination of highest flow, rate of increase or decrease of flow, etc. On the other hand, studying migration and remittances in the network setting allows us to generate a clearer picture of the complex interactions embedded in its structure. Fagiolo and Mastrorillo [3] used a complex-network perspective to study the binary and weighted architecture of the international migration network, exploring link and node statistics, assortativity, and clustering among others. In [4, 5], centrality in the migration network was studied in terms of weighted and unweighted vertex indegreeFootnote 1 and outdegree. Simply put, these measure the diaspora and reach of migrants coming in and going out of a particular country. In addition, community detection via link density was also explored.

In this note, we demonstate how we can use topo-algebraic methods to identify flow patterns in the Asian net migration and remittance networks resembling cycles involving multiple countries. One advantage of this method over graph theory methods is that it is able to recover higher dimensional patterns, capturing more complex interactions among multiple nodes and offering a more holistic perspective on the topology of the network (see Fig. 1). For a list of countries included in this analysis, see Table 1.

Figure 1
figure1

Asian net Migration and Remittance Networks. (a) Each edge in the Asian net migration network is weighed using a weight function similar to equation 1, and colored according to increasing weight from red to blue. Country abbreviations are as in Table 1. (b) The directed graph of the Asian net remittance network is constructed similarly. (c) A circular flow of migrant surplus between Tajikistan, Kazakhstan, and Kyrgyztan. (d) Net remittance flow among Indonesia, India, Malaysia, Saudi Arabia, and Singapore. (e) An example of a more complex flow of migrant surplus among groups of countries in Asia. Each triangle is colored according to flow magnitude, and graded with respect to flow direction. (f) An example of the complex flow of remittance surplus among groups of countries in Asia

Table 1 Ordered list of Asian countries with abbreviation codes

We define net remittance to be the positive difference in the remittances exchanged by two countries. We consider the net remittance network \(R = (V,E_{R})\) whose vertex set V represents countries, and edges weighed according to net remittances with direction towards the country that recieves more. Hence, the weight of a directed edge \((a,b)\in E_{R} \subseteq V\times V\) represents the profit country b gains from exchanging remittances with country a and can be thought of as a measure of the flow of remittance surplus between the two countries. We can store the information in this directed network into an incidence-weight matrix \(W = [w_{ab}]\) where

$$ w_{ab} = \textstyle\begin{cases} r_{ab} - r_{ba} & \mbox{if } r_{ab}>r_{ba},\\ 0 &\mbox{otherwise}, \end{cases} $$
(1)

and \(r_{ab}\) represents the total remittance from a to b. The definition of the weight function yields a simple directed graph admitting no self-loops (see Fig. 1). We define net migration and the migration network \(M = (V,E_{M})\) in a similar manner. With these definitions, the extracted patterns then reflect the flow dynamics of migrants and remittances within groups of countries, which may provide insights about inter-country relationships and their relative impacts on the group’s overall dynamics. The incidence-weight matrix of the net migration and remittance networks used in this study is available upon request from the authors.

Our approach utilizes a relatively new method in data analysis known as persistent homology whose early roots trace back to Size Theory in the 90’s [6,7,8,9] (for connected components) and later generalized to higher dimensions by Edelsbrunner, Letscher, and Zomorodian [10]. We refer the reader to [11,12,13] for a detailed account of the history and development of the theory. In this note, we apply persistent homology to data viewed as a directed network, from which we build a sequence of mathematical objects each contained in the next. Distinct (non-homologous) generators of topological features that persist significantly along the sequence of mathematical objects are then regarded as encoding the overall shape of the point-cloud. We make precise what we mean by generators in Sect. 3.2. Several works have employed this approach in studying the topology of undirected networks [14,15,16,17]. An extension of this approach to directed networks using path complexes has been explored by Chowdhury and Mémoli [18, 19], and via neighborhood complex by Horak et al. [20]. In [17], Petri et al. introduced a filtration that allowed them to compute the persistent homology of weighted undirected networks, and remarked that their methods are amenable to extension to directed networks following the directed clique construction of Palla et al. [21]. Reimann et al. [22] used the same directed clique construction to compute homology of neural networks, but they did not analyze the persistence of features. The contribution of our work is the implementation and development of Petri et al.’s idea to extend persistent homology theory to directed networks via cliques. The integration of the directional component to the theory allows us to talk about cycle types and perpetuity of topological features of directed networks. We expound on these notions in Sect. 3. We also present a modification to barcodes, the output diagram of persistent homology, by introducing a coloring scheme that distinguishes features of the same dimension.

The rest of the paper is organized as follows. Section 2 describes the data sets and the estimation measures used. In Sect. 3, we discuss the theoretical foundations, highlight the contributions of our work, and present an example using a toy network. Section 4 presents the patterns and shapes extracted from the Asian net migration and remittance networks. Finally, Sect. 5 presents a summary and concluding remarks.

Dataset description

According to UNDESA’s international migration report in 2015 [1], nearly half of all international migrants worldwide were born in Asia, and nearly a third live there. From year 2000 to year 2015, this region had more new international migrants than any other major area.Footnote 2 Interestingly, Asia also ranks second on the percentage (60%) of people living in a different country but within the same region. These make Asia one of the most highly fluid regions in terms of internal migrant mobility.

We perform our analysis on the 2015 Asian net migration and remittance networks which include 50 countries and states as listed in Table 1. We use data on foreign-born population obtained from the UN Global Migration Database and on bilateral remittances from the World Bank database as reported respectively in [23] and [24].

The migration data uses estimates on foreign-born population based on censuses, registers, and models. These estimates also take into account factors such as the estimated size of the total population in the country of destination, and specific country circumstances such as sudden migrant influx or exodus due to conflict, economic booms or busts, and major changes in migration policies. For lack of data source, estimates for the Democratic People’s Republic of Korea were based on “model” countries chosen according to similarity in criterion for enumerating international migrants, proximity, and migration experience. A complete documentation of the migration data set is available in [25].

The data set on bilateral remittances is a composite of the migration data and the total remittance inflows. Let \(M_{ji}\) represent the number of migrants from country j living in country i, and \(R_{j}\) the total remittance inflow to country j from all countries, computed as the sum, where data is available, of two components in the International Monetary Fund’s Balance of Payments Statistics: compensation of employees and personal transfers. For some countries, data is obtained from the respective country’s Central Bank and other relevant official sources. A detailed account of this computation can be found in [2]. From \(M_{ij}\) and \(R_{i}\), the bilateral remittances between two countries are estimated using a method devised by Ratha and Shaw [26]. The remittance from country i to country j is the product of the number of migrants \(M_{ji}\), and the average remittance \(\rho_{ij}\) sent home by a migrant as modeled by

$$ \rho_{ij} = \textstyle\begin{cases} Y_{j} & \mbox{if } Y_{i} < Y_{j},\\ Y_{j} + (Y_{i}-Y_{j})^{\beta} &\mbox{if } Y_{i}\geq Y_{j}, \end{cases} $$
(2)

where \(Y_{i}\) and \(Y_{j}\) are respectively the average gross national income per capita of the host and home countries, and β is a parameter between 0 and 1. This model assumes that an average migrant sends at least as much as the per capita income from home. For each country, the parameter β is estimated so that the total lateral remittances to country j matches \(R_{j}\), that is

$$ R_{j} = \sum_{i}\rho_{ij}M_{ji}. $$
(3)

The World Bank [24] states that some issues about these estimates are:

  1. (a)

    the data on migrants in various destination countries are incomplete;

  2. (b)

    the incomes of migrants abroad and the costs of living are both proxied by per capita incomes in terms of purchasing power parity;

  3. (c)

    there is no way to capture remittances flowing through informal, unrecorded channels.

The data for bilateral remittances does not include State of Palestine so we treat these missing values as zero.

Methods

Directed clique complexes

The central idea is the following: given a directed network, construct a mathematical object C (called a simplicial complex) in such a way that resulting topological features of C correspond to patterns in the network (see Fig. 2). One advantage of this approach is that these patterns, which give a higher-order description of the underlying network (i.e. beyond clustering or linking), can be easily extracted via their corresponding topological features using tools from algebraic topology.

Figure 2
figure2

Pipeline for persistent homology. Given a directed network, a simplicial complex is constructed. Topological features in the simplicial complex are then extracted using tools from algebraic topology and are used to identify corresponding flow patterns in the directed network

A directed network can be viewed as a collection of smaller subnetworks called directed cliques [21]. A k-clique \(\{ v_{i_{1}},v_{i_{2}},\ldots,v_{i_{k}}\}\), \(i_{j}\) a nonnegative integer for \(1\leq j\leq k\), is a set of k vertices that induce a subnetwork where every pair of vertices is connected by an edge. A directed k-clique is a k-clique with a unique sourceFootnote 3and a unique sink (see Fig. 3). Observe that this definition induces an ordering on the set of k vertices and a maximal directed path \(v_{0} \to v_{1}\to\cdots \to v_{k-1}\). Thus, this directed k-clique will be denoted by the ordered k-tuple \([v_{0},v_{1},\ldots,v_{k}]\). This gives a natural way of simplifying network flow structure by adopting, whenever possible, an overall unidirectional flow from the source to the sink in vertex communities having complete local connections.

Figure 3
figure3

Examples and non-examples of Simplices. The order on the vertices is preserved by the corresponding simplex name: (a) a 0-simplex \([a]\), (b) a 1-simplex \([a,b]\), (c) a 2-simplex \([a,b,c]\), (d) 3-simplices \([a,b,c,d]\), and \([d,a,b,c]\). (e) and (f) Since not all vertices are connected, the set \(\{a,b,c,d\}\) does not form a 4-clique, and hence is not a 3-simplex. (g) An example of a 3-clique that is not directed since a unique source (nor sink) does not exist. (h) An example of a directed clique complex having four 0-simplices, five 1-simplices, and one 2-simplex

To transform our directed network into a topological object, it is sufficient to define what the simplices are. The directed clique complex is obtained by defining simplices of dimension k to be directed \(k+1\) cliques. Doing so transfers, in a natural way, the directional information on cliques to spatial information on simplices as the latter can be visually represented by geometric objects: a 0-simplex is a point, a 1-simplex is a directed edge connecting two points, 2- and 3-simplices are respectively filled in triangles and solid tetrahedra whose edges form directed paths from the unique source to the unique sink as in Fig. 3.

We remark here that our definition of simplices via directed cliques is motivated by the flow structure we are concerned with. A k-simplex represents a group of \(k+1\) countries where pairwise interactions exist between any two members, and the overall flow structure can be characterized by the unidirectional flow from a unique source (that sends to every country) to a unique sink (that receives from every country). Masulli and Villa [27] used the same construction to investigate how resulting topological invariants, the Euler characteristic and network degree, can be used to assess specific functional and dynamical properties of directed networks. This definition can be modified to fit an appropriate alternate model. One alternative construction, due to Grigor’yan et al. [28,29,30] uses paths in a directed network to define simplices. This construction allows more flexibility in the definition of simplices, which in turn gives rise to an increased complexity in simplex variety that makes the approach less intuitive. For example, the network on four vetices in Fig. 3(e) is in fact the sum of two 2-paths, and hence regarded as a two-dimensional simplex generator in a path complex. This however, as Chowdhury and Mémoli [19] point out, shows that path homology is able to differentiate this particular motiff from other types of cycles. Another construction due to [31] is via ordered tuple complexes where simplices are ordered tuples \((v_{0},v_{1},\ldots,v_{p})\) closed under deletion of entries, and where repetition of vertices is allowed.

Directed clique homology

Now that the directed network has been converted to a simplicial complex, we can extract its topological features by employing a standard method in algebraic topology originally used to classify topological spaces. Let C denote the simplicial complex associated to the directed network. For each \(n=0, 1, 2, 3\), we consider the set \(K_{n}(C)\) of all n-simplices in C, and the free vector space \(C_{n} = \mathbb{Z}/2\mathbb{Z}[K_{n}(C)]\) of all formal linear combinations of n-simplices with coefficients either 0 or 1. We can relate consecutive spaces \(C_{n}\) and \(C_{n-1}\) by extending linearly the boundary map \(\partial_{n}: K_{n}\to K_{n-1}\) defined on simplices as

$$ \partial_{n}(\sigma_{n}) = \sum _{i=0}^{n}[v_{0},v_{1},\ldots, \hat{v_{i}},\ldots,v_{n}], $$
(4)

where \(\hat{v_{i}}\) means \(v_{i}\) is omitted. By definition, the boundary of a 0-simplex is zero. For example, if \(\sigma_{2} = [a,b,c]\) as in Fig. 3,

$$\begin{aligned} \partial_{2}(\sigma_{2}) &= [b,c] + [a,c] + [a,b]. \end{aligned}$$

The collection of the outputs of the map \(\partial_{n}\), which we will call boundaries, is denoted by \(\operatorname{Im} \partial_{n}\). It can be verified that the images under \(\partial_{1}\) for the directed clique complexes in Figs. 3(e), 3(f), and 3(g) are all zero. In general, elements of \(C_{n}\) whose image under \(\partial_{n}\) is zero are called n-cycles, and the collection of all such elements is denoted by \(\ker\partial_{n}\). Observe that applying \(\partial_{n}\) to the output of \(\partial_{n+1}\) always yields zero. This means that all boundaries of sums of \(n+1\)-simplices are n-cycles in \(C_{n}\). The nth homology group \(H_{n}\) is then defined as the abstract algebraic quotient space

$$ H_{n} = \ker\partial_{n}/\operatorname{Im} \partial_{n+1}. $$
(5)

In this space, any n-cycle that is the boundary of a linear combination of n+1-simplices is treated as zero, and hence regarded algebraically trivial. For example, the cycle \(c_{1} = [a,d] + [d,b] + [a,b]\) is trivial since it is the boundary of the 2-simplex \([a,d,b]\). As a consequence, a pair of n-cycles whose difference is trivial in the above sense are considered homologous. For example, the 1-cycles \([a,b]+[b,c]+[c,d]+[a,d]\) in Fig. 3(f) and \([b,c]+[c,d]+[d,b]\) in Fig. 3(g) are homologous in the directed clique complex in Fig. 3(h) since their difference is precisely \(c_{1}\). Alternatively, these two 1-cycles can be viewed as surrounding the same “hole” in the directed clique complex. We then say that these 1-cycles generate the same class in the homology group \(H_{1}\). In a similar manner, the generators of the homology group \(H_{n}\) are the representative linear combinations of n-dimensional simplices that surround distinct topological features embedded in the simplicial complex. These topological features capture complex structures and interactions in the network fabric (see Fig. 1(c)–(f)). For instance, the generators of \(H_{0}\) partition the vertices into clusters in a manner similar to single linkage clustering. We will expound on this in Sect. 3.6.

Notice that a variety of patterns may arise from a given feature. For example, a 1-cycle in the directed clique complex may correspond to any of the patterns in Figs. 3(e)–3(g). For differentiation, we will refer to 1-cycles whose corresponding pattern in the directed network has no source nor sink, as in Fig. 3(g), as circuits. This pattern depicts a circular flow in the network. In addition, 1-cycles whose pattern has a unique source and a unique sink will be called Type 1 1-cycles (see Figs. 3(e) and 3(f)), while 1-cycles with multiple sources and sinks will be referred to as Type 2 1-cycles.

Filtrations, persistence, and perpetuity

Let us assign weights to our toy network (see Fig. 2). Examining the entire directed network, we see in Fig. 4(c) that it contains a Type 1 1-cycle (\([h,b]+[b,d]+[d,g]+[h,g]\)) and a 2-cycle (\([a,c,d]+[c,f,d]+[f,a,d]+[a,c,e]+[c,f,e]+[f,a,e]\)). Now, suppose we filter the network by including only edges of weight exactly 1, then build it’s corresponding directed clique complex (see Fig. 4(d)–4(f)). In this case, we detect three 1-cycles and no 2-cycles. This shows that filtering the network via edge weight may reveal more patterns invisible to homology when all edges are included. For this reason, we will consider a sequence of directed networks (each a subnetwork of the next) parametrized by edge weight: for each threshold \(\epsilon\geq0\) we construct the subnetwork consisting of all vertices and all directed edges of weight at most ϵ (see Fig. 5(a)). This in turn induces an associated filtration of directed clique complexes (see Fig. 5(b)).

Figure 4
figure4

Patterns within subnetworks. (a) The toy network in Fig. 2 with edge weights assigned. (b) The associated directed clique complex of the entire directed network in (a). (c) A 1-cycle consisting of the sum of four directed edges and a 2-cycle consisting of the sum of six 2-simplices embedded in the directed clique complex in (b). (d) A subnetwork obtained by including only edges of weight exactly 1. (e) The associated directed clique complex of the subnetwork in (c). (f) Three 1-cycles detected in the directed clique complex in (e)

Figure 5
figure5

Two filtrations of the toy network. (a) A sequence of subnetworks paremetrized by edge weights. (b) Filtration of clique complexes induced by the sequence in (a). (c) The persistence barcode recording the birth and death history of distinct topological features in the complex: connected components (black bars), holes (red bars), and voids (blue bars)

By examining the features of each subcomplex and keeping track of their representative generators, we can identify topological features that persist significantly across the development of the complex. Persistent cycles are regarded as significant patterns in the directed network. This is the main idea of persistent homology due to Edelsbrunner, Letscher, and Zomorodian [10] who originally applied it over arbitrary filtrations of simplicial complexes. Many adaptations and refinements have been proposed to make persistent homology computationally efficient [32, 33] and suited for a wide variety of data sets. In particular, Petri et al. [16, 17] applied persistent homology on the filtered clique complex for weighted undirected networks. As suggested in their paper, we modify their approach by adopting the directed k-clique construction of Palla et al. [21].

Throughout the network development, cycles can be trivialized by becoming the boundary of higher dimensional simplices. Cycles can also become homologous to older cycles. In these cases, we say that the cycle dies. Otherwise, we say it persists. This birth and death history of homological cycles throughout the filtration can be transcribed in a barcode, a diagram consisting of bars representing the birth and death history of features of all dimensions. In a barcode, the length of the bars record the persistence of the features, and measure how long a pattern survives before it gets killed off. Figure 5(c) shows the persistence barcode of the filtered directed clique complex in Fig. 5(b): black bars represent connected components, red bars represent 1-cycles, and the blue bar represents the lone 2-cycle. The long black bar signifies that connectivity in the directed network is characterized by a single component. Similarly, the longest red bar detects the single persistent 1-cycle (\([h,b]+[b,d]+[d,g]+[h,g]\)), and the blue bar detects the 2-cycle in Fig. 4(c).

It must be noted that the intrinsic structure of the directed network and the filtration we use significantly influence how the resulting persistence barcode is read. In the usual undirected persistent homology on finite metric spaces, since the threshold filters only through distances between vertices, higher dimensional simplices are always created as the threshold scans through all distances, and holes of any dimension eventually get filled in. This means that all but one 0-dimensional bar in the barcode must die. In contrast, our construction of the simplicial complex limits the simplices to maximally connected subnetworks built up from actual directed edges connecting vertices. Hence, 1-dimensional simplices are introduced only when corresponding directed edges are present, and once the threshold reaches the maximum edge weight, no additional simplices can be constructed. This then means that in the barcode, the topological features of the entire directed network are encoded by the bars that never die. We will refer to these bars as perpetual. We note that perpetual bars indeed represent the Betti numbers after computing homology at the end of the filtration. As we are using a similar filtration (see Sect. 3.4) implemented by jHoles [34] to compute persistent homology for weighted undirected networks, the Betti numbers computed by jHoles and the perpetual bars in our barcode have the same interpretation.

We compute persistent directed clique homology using the standard persistence algorithm that appears in [35] adapted for directed clique complexes using code written from scratch.

Max-to-min weight filtration

Given a network with incidence-weight matrix \([w_{ij}]\), we can transform nonzero weights \(w_{ij}\) using the function

$$ f(w_{ij}) = \bigl(\max\bigl([w_{ij}]\bigr)+1 \bigr)-w_{ij} $$
(6)

and induce the filtration of clique complexes using the transformed values. This transformation amounts to thresholding from the largest weight in the network to the smallest, and is done so that persistence picks up the most significant (magnitude-wise) flow patterns. With this transformation, cycles having large weights (i.e. significantly large flows) are born early, and since persistence depends on birth and death of features, cycles that are born early but get killed off by edges having significantly smaller weights still have large persistence. This approach is essentially the weight rank clique filtration introduced in [17] with the threshold reparametrized to reflect increasing differences from the maximum weight, and is different from most other filtrations as thresholding is via decreasing dissimilarities: two 0-simplices will be connected early if the directed flow between them is large.

We will employ this approach in computing persistent features in both net migration and remittance networks.

Variation on persistence barcodes

Since homological cycles correspond to actual subnetworks, we can encode additional information in the 1- and 2-dimensional barcodes by coloring the bars according to the standard deviation of the weights in the cycles they represent. We adhere to the elder rule and use the oldest generators to represent homology classes, that is, we compute the standard deviation of all the edge weights present in the oldest linear combination of simplices that surround a topological feature. This allows differentiation between cycles of the same dimension according to the variation in the edge weights, and is most useful for distinguishing cycles that are born at a later stage in the filtration as illustrated in an example in the following section. The introduction of this coloring scheme supplements the information encoded within barcodes, and could potentially be combined with other tools, such as persistence landscapes [36, 37], homological scaffolds [38], and persistent entropy [39, 40], that enrich the information extrapolated from barcodes.

Another toy example

In this example, we will use the same techniques introduced in the beginning of this chapter. The difference from the previous example is that we are going to use the transformed values to filter the weights in the directed network so that along the filtration, edges having large weights are born first as described in Sect. 3.4.

Consider the weighted directed network given in Fig. 6. Several slices of the filtration are superimposed on the persistence barcode shown in Fig. 7. The three persistent and perpetual bars in the 0-dimensional barcode (bottom) detects the three connected components in the directed network. Each bar in this barcode represents a vertex in the network, and is colored according to the component it eventually belongs to. In general, the connected components are formed in a manner similar to how clusters are formed via single linkage hierarchical clustering: a vertex is connected to a component at threshold ϵ if the maximum weight of the edges connecting the vertex to any vertex in the component is at least ϵ. Hence, just as the single linkage dendrogram, the 0-dimensional barcode records the number of connected components in the underlying undirected graph formed at any threshold level.

Figure 6
figure6

Another toy example. A toy example of a weighted directed network

Figure 7
figure7

Barcodes for the toy example. Colored persistence barcodes for the toy network in Fig. 6 superimposed with several slices in the filtration. For this example, the original edge weights are used as labels (instead of the transformed values) for threshold levels. The colored 0-dimensional barcode (bottom) reflects which connected component each vertex eventually belongs to. The colored 1 and 2-dimensional barcodes (middle and top respectively) distinguish the 1-cyles and 2-cycles by three criteria: persistence, perpetuity, and weights variation

The 1-dimensional barcode (middle of Fig. 7) detects the four 1-cycles in Figs. 8(a) to 8(d). Let us examine the information each bar provides. The early birth and small standard deviation of the first persistent and perpetual bar shows that the cycle it represents has large and almost equal edge weights. Its persistence and perpetuity suggest that this cycle is an actual 1-dimensional feature of the entire directed network. The second bar starts relatively early, suggesting that the corresponding cycle has relatively large weights. The increased but small standard deviation reveals that the edge weights are slightly spread, and its small persistence reveals that this cycle gets killed off shortly after birth. The third bar born midway through the diagram reveals that the smallest edge weight in the cycle it represents is half of the largest edge weight in the directed network. The extremely high standard deviation of this bar shows that the edge weights in the cycle are considerably spread, and the relatively high persistence shows that this pattern survives for a while before getting trivialized. The last bar being born late reveals that the edge weight completing the cycle is very small. Its small standard deviation suggests that the other edge weights in the cycle are also small. Its perpetuity reveals that this cycle is also a 1-dimensional feature of the directed network.

Figure 8
figure8

Cycles in the toy example. Figures (a)–(d) show the 1-cyles for the toy example. The nodes are colored red if the sum of the weights of all outgoing edges is larger than that of incoming edges, and blue otherwise. Deeper colors represent larger numbers. The shape of a node indicates whether it is a source or sink (circle) or not (square). The edges follow a coloring spectrum of red for the smallest edge weight in the network to blue for the largest. Figures (e)–(f) show the two 2-cycles in the toy example. The directed triangles are colored according to the weight of the edge that completes the triangle

The 2-dimensional barcode detects the two spheres in Figs. 8(e) and 8(f). The first persistent bar being born before the halfway mark in the diagram shows that all edges in the 2-cycle have weights bigger than half of the largest weight in the network. Although not extremely spread, the large range of values covered by its assigned color suggests that the weight distribution in the 2-cycle is somewhat spread. The death of the bar signifies that this 2-cycle is eventually trivialized. The perpetual black bar shows that a 2-cycle with highly variable edge weights is a 2-dimensional feature of the entire directed network.

Patterns and shapes in Asian net migration and remittance networks

The barcodes in Fig. 9 show the persistence of the homological cycles of dimensions \(n=0,1,2\) for the 2015 Asian net migration (9(a)) and remittance (9(b)) networks. The bars in the 0-dimensional barcode represent the Asian countries arranged as in order given in Table 1 starting from the bottom. For the net migration network (bottom of Fig. 9(a)), the single perpetual bar indicates that every country in Asia had an unequal exchange of migrants with at least one other Asian country in 2015. For the net remittance network, the two persistent and perpetual bars represent the distinct perpetual connected components in the network. The bottom perpetual bar represents the connectedness of 49 out of the 50 states in the Asian remittance network, while the other perpetual bar represents State of Palestine whose remittance data is missing. In both the migration and remittance networks, the relatively long bars in the 0-dimensional barcode suggest, in accordance with the reparametrization described in equation (6), that the net migration and remittances between countries in Asia are mostly small relative to the largest net migrant flow (3,487,351 people from IN to AE) and remittance (15,558.59 million USD from HK to CN).

Figure 9
figure9

Persistence Barcodes. (a) 0-, 1-, and 2-dimensional barcodes (bottom, middle, and top respectively) of the Asian net migration network. (b) 0-, 1-, and 2-dimensional barcodes of the Asian net remittance network. The colors in the 0-dimensional barcodes represent eventual component membership, while colors in the 1- and 2-dimensional barcodes reflect the standard deviation of the edge weights in the cycle

The distinct 1- and 2-cycle generators for the Asian migration network appear in Figs. 1011 and Figs. 1213 respectively arranged beginning from the generator that corresponds to the lowest bar in the appropriate barcode. The edges of 1-cycles are colored according to weight. These 1-cycles reveal patterns that highlight both intra- and inter-regional migrant movement, and the role that each country plays in these groups. For example, while IN tends to be a dominant source of migrants within cycles, and SA a dominant sink, they do become transitory countries in Figs. 10.16 and 11.39 respectively. Similarly, while MY tends to be a transitory country in most cycles, it does become a sink in several instances.

Figure 10
figure10

Cyclic patterns of Asian migration. 1-cycle generators for the 2015 Asian net migration network. Nodes are colored red if, relative to countries in the cycle, more migrants are moving out than coming in, and blue otherwise. Darker shades represent larger numbers. Square nodes represent transitory countries while circles denote sources and sinks

Figure 11
figure11

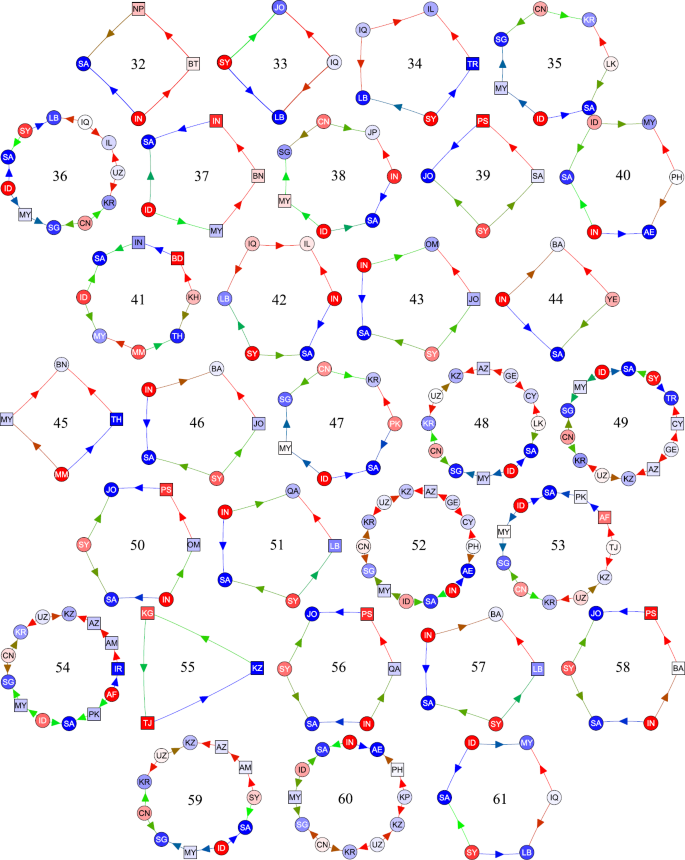

Cyclic patterns of Asian migration continued. 1-cycle generators for the 2015 Asian net migration network. See Fig. 10 for details

Figure 12
figure12

Spherical patterns within the Asian migration and Remittance networks. 2-cycle generators for the 2015 Asian net migration (M1-M37) and remittance (R1-R42) networks

Figure 13
figure13

Spherical patterns within the Asian migration and Remittance networks continued. 2-cycle generators for the 2015 Asian net migration (M1-M37) and remittance (R1-R42) networks

The 2-cycles illuminate more complex migrant and remittance movements and the effect of a unified 3-country flow in a local setting. Each face (directed 2-clique depicting a 3-country unit) in a 2-cycle is colored according to the threshold at which the 2-simplex is born, and graded towards the sink of this directed clique, representing the lower bound for the flow from the source to the sink. Both coloring schemes for the 1- and 2-cycles follow the appropriate color spectrum in Fig. 1. It is worth noting that regional circuits tend have the same sinks (Figs. 12.M4-M7 for the migrant network), and sources (Figs. 14.R4-R5, R9-R12, R13-R17, Figs. 14.R23–15.R24, and Figs. 14.R29-R32 for the remittance network) foreshadowing the position of these countries in a regional level.

Figure 14
figure14

Spherical patterns within the Asian migration and Remittance networks continued. 2-cycle generators for the 2015 Asian net migration (M1-M37) and remittance (R1-R42) networks

Figure 15
figure15

Spherical patterns within the Asian migration and Remittance networks continued. 2-cycle generators for the 2015 Asian net migration (M1-M37) and remittance (R1-R42) networks

The two most persistent 1-cycles are both of Type 2 and appear in Figs. 16(a) and 16(b). The coloring of the corresponding bars in the 1-dimensional barcode (middle of Fig. 9(a)) reveals medium to high variability in the net migrant flow from the source countries PS and SY (Fig. 16(a)), and IN and PH (Fig. 16(b)) to respective sink countries JO and LB, and AE and SA. In particular, the extremely high cycle weights variability for the most persistent 1-cycle (Fig. 16(b)) reflect the significantly higher flow of migrants to AE and SA from IN than from PH. It is worth noting that while PS and SY, and IN and PH play the role of sources in these persistent cycles, none of them are in fact true sources when viewed as nodes in the entire directed network. This shows that homology can find these important cycles illustrating persistent complex flow patterns which would not have been found via standard graph theory techniques. The same can be said of the sinks JO and LB, and AE and SA in these persistent Type 2 1-cycles.

Figure 16
figure16

Persistent cycles of migration. (a) The second most persistent 1-cycle in the Asian net migration network. This 1-cycle corresponds to the lowest bar in the 1-dimensional barcode in Fig. 9(a). (b) The most persistent 1-cycle in the Asian net migration network. (c) and (d) Perpetual 2-cycles in the Asian net migration network

Of the 61 distinct 1-cycle generators throughout the Asian net migration network evolution, only 1 is a circuit (Fig. 11.55) detecting the circular flow of migrant surplus along Kazakhstan → Kyrgyztan → Tajikistan → Kazakhstan. Within this circle of migrant movement, Kazakhstan receives a net migrant flow (inflow minus outflow) of 8746 people, while Kyrgyztan and Tajikistan both lose migrants by 3256 people and 5486 people respectively. In addition, only four 1-cycles of Type 1 are detected, having respective sources and sinks IN and SA (Fig. 11.32), ID and SA (Fig. 11.37), SY and JO (Fig. 11.39), and MM and BN (Fig. 11.45). The rest of the detected 1-cycles are of Type 2 having developing states as sources and high income states as sinks. Moreover, while algebraically trivial circuits and Type 1 1-cycles abound as meridians in many 2-cycles, the grading shows that migrant flows are directed towards an external (high income) sink node. In addition, all 1-cycles are born late in the filtration, and the mean standard deviation of 1-cycle edge weights is very high at 81,6704 people. All these suggest a familiar scene: that migrant movement within Asia is characterized by highly unbalanced exodus of migrants from developing to high income states. That all bars in the 1-dimensional barcode die at the end of the filtration reflects that there is in fact very small migration flow across states within the 1-cycles other than the flow described by the 1-cycle itself.

There are two perpetual 2-cycles in the Asian net migration network, shown in Figs. 16(c) and 16(d). These two spheres reveal the complex flow dynamics among the countries included in the 2-cycles. In particular, Fig. 16(c) shows that in this group of countries, AF and CN are sources of migrant flows while IL and MN are attractors. On the other hand, Fig. 16(d) reveals that there is movement of migrants from CN to LK via a transitory circuit that runs along BD → BT → NP → BD. As there is also one perpetual connected component, and no perpetual 1-cycle, we see that the overall topology of the entire Asian migration network is characterized by two spheres (Fig. 16(c) and 16(d)) joined at a source node (CN).

For the Asian net remittance network, the distinct 1- and 2-cycle generators are shown in Figs. 1718 and Figs. 1315 respectively. The two most persistent 1-cycles are also both of Type 2 as shown in Fig. 19. The most persistent 1-cycle (Fig. 19(a)) being born significantly earlier than the rest with relatively low cycle standard deviation suggests that the flows of net remittances among the countries in the cycle are relatively uniform and are all significantly larger than other flows in the network.

Figure 17
figure17

Cyclic flow of remittances in Asia. 1-cycle generators for the 2015 Asian net remittance network

Figure 18
figure18

Cyclic flow of remittances in Asia. 1-cycle generators for the 2015 Asian net remittance network

Figure 19
figure19

Persistent remittance cycles. The two most persistent 1-cycles in the Asian net remittance network. (a) This Type 2 1-cycle corresponds to the most persistent bar in the 1-dimensional barcode in Fig. 9(b). (b) This Type 2 1-cycle corresponds to the second most persistent bar in the 1-dimensional barcode

There is only one 1-cycle generator of Type 1 (cycle 59 in Fig. 18) having source SA and sink JO, and the rest are of Type 2 with sources mostly high income states, and sinks developing states. Similar observations as those in the migration network suggest that highly unbalanced flows of remittances from high income to developing countries abound in Asia. An interesting observation is that the second most persistent 1-cycle (Fig. 19(b)) in the net remittance barcode is a copy of the most persistent 1-cycle for the net migration network with all arrows reversed.

Summary and conclusion

In this note, we showed how persistent directed clique homology can be used to extract embedded patterns in weighted directed networks that reveal complex and simultaneous interactions among multiple vertices. Detection of these patterns affords a deeper probe into the local and global topological features of directed network models. By adopting Palla et al.’s [21] directed clique construction, we applied persistent homology to the associated directed clique complex of a weighted directed network using a filtration technique similar to the weight rank clique filtration introduced by Petri et al. [17]. The definition of directed cliques allowed us to simplify network flow structure by adopting an overall unidirectional flow in vertex communities having complete local connections.

We used tools from algebraic topology to extract topological features from the simplicial model in order to detect specific flow patterns woven in the network fabric. The goal of homology is to understand the shape of a graph by identifying cycles. For 0-dimensional homology, every vertex is a cycle. By modding out by boundaries, we recover weakly connected components. At the 1-dimensional level, we detect circuits as well as Type 1 cycles (with unique sink and unique source) and Type 2 cycles (with multiple sinks and sources). Note that we observed many more Type 2 cycles than both circuits and Type 1 cycles in both the migrant and remittance networks, illustrating more complex flow pattern than what is generally found via traditional graph analysis. We also recovered higher dimensional topological features such as sphere-like voids, illuminating the complex migrant and remittance flow dynamics within groups of countries in a regional setting. The advantage of persistent homology over homology at a fixed threshold is that one can analyze how the simplicial model changes as the threshold varies. Other contributions of this paper include:

  • Classifying 1-cycles as circuits (no sink nor source), Type 1 (with unique sink and unique source), or Type 2 (with multiple sinks and sources). These different types of 1-cycles encode different flow patterns. The definition of the directed clique also allows for the detection of the circuit with three vertices—a feature not commonly detected in other TDA methods.

  • Characterizing topological features of directed network by perpetuity. While persistent homology on undirected networks tracks long-lived topological features along a filtration, persistent directed clique homology in addition detects topological features of the entire directed network by tracking cycle generators that never get killed off.

  • Distinguishing topological features of the same dimension by introducing coloring schemes for the barcodes. For the 0-dimensional barcode, coloring the bars according to eventual connected component membership encodes the clustering of the vertices at the end of the filtration similar to the final clustering output of single linkage hierarchical clustering. For dimensions of at least 1, coloring the bars according to variation in the edge weights within the cycles captures information on similarity or disparity among internal flows in the cycle. It is worth noting that persistence is agnostic of such characteristic in detected cycles.

We obtained the colored barcodes after computing persistent homology from the directed clique complexes of the Asian net migration and remittance networks. For the Asian net migration network, connectivity is characterized by a single perpetual component with most linkages forming at the end of the filtration. An analysis of the sixty-one detected 1-cycles shows that most are of Type 2, including the two that are most persistent. This reflects the abundance of highly unbalanced movements of migrants from groups of low income countries to high income states. Moreover, thirty-seven 2-cycles are detected, all of which are spheres and two are perpetual, encoding the complex migrant flow structure among multiple countries in Asia. On the other hand, sixty 1-cycles and forty-two 2-cycles are detected in the net remittance network. Most 1-cycles are also of Type 2, two of which have significantly larger persistence, and all 2-cycles are spheres. We generate figures for all detected 1-cycles (Figs. 1011 and 1718) and 2-cycles (Figs. 1215) and present them in the text.
