A language framework for modeling social media account behavior

Abstract

Malicious actors exploit social media to inflate stock prices, sway elections, spread misinformation, and sow discord. To these ends, they employ tactics that include the use of inauthentic accounts and campaigns. Methods to detect these abuses currently rely on features specifically designed to target suspicious behaviors. However, the effectiveness of these methods decays as malicious behaviors evolve. To address this challenge, we propose a language framework for modeling social media account behaviors. Words in this framework, called BLOC, consist of symbols drawn from distinct alphabets representing user actions and content. Languages from the framework are highly flexible and can be applied to model a broad spectrum of legitimate and suspicious online behaviors without extensive fine-tuning. Using BLOC to represent the behaviors of Twitter accounts, we achieve performance comparable to or better than state-of-the-art methods in the detection of social bots and coordinated inauthentic behavior.

1 Introduction

The widespread use of social media makes them a prime target for exploitation by bad actors. Efforts to inflate the popularity of political candidates [1] with social bots [2], influence public opinion through the spread of disinformation and conspiracy theories [3, 4], and manipulate stock prices through coordinated campaigns [5, 6] have been widely reported. The threats posed by malicious actors are far-reaching, endangering democracy [7, 8], public health [9–11], and the economy [12]. In response, researchers have developed various tools to detect malicious inauthentic accounts.

However, we are in an arms race. With new detection methods and prevention mechanisms from platforms, malicious actors continue to evolve their behaviors to evade detection. For example, consider the evolution of social bots: in the early days, spam bots were easy to identify because they often lacked meaningful profile information and/or demonstrated naive behaviors [13, 14]. In recent years, bot accounts have become more sophisticated. Some display detailed profiles, either stolen from other users or generated by deep neural networks [15]. Some mimic human actions and build social connections [16]. Others adopt strategies such as coordinated inauthentic behaviors.¹ Such coordinated behaviors appear to be normal when inspected individually, but are centrally controlled to achieve some goal [6].

The arms race has spawned a series of more complex detection methods [6, 16, 17]. An important limitation of these methods is that they rely on features crafted specifically to target previously observed malicious behaviors [18]. These features may not generalize well to other suspicious behaviors. For example, methods designed to detect sophisticated social bots tend to overlook coordinated behaviors, and vice versa [19]. Existing methods also become less useful when facing novel malicious actors, unless the features are adjusted accordingly.

To address this challenge, we propose a framework of Behavioral Languages for Online Characterization (BLOC), designed to represent social media account behaviors. Not to be confused with neural network-based language models, the BLOC framework involves formal languages specified by sets of rules for generating strings of symbols that describe online behaviors. BLOC words consist of symbols drawn from distinct alphabets representing an account’s actions and content. As an example, Fig. 1 illustrates possible representations of a sequence of tweets by the official Twitter handle for NASA. BLOC languages are highly flexible in that they can represent a broad spectrum of legitimate and suspicious behaviors without extensive fine-tuning. In this paper we show that meaningful behavioral patterns emerge from such representations, facilitating tasks related to the classification of social media accounts.

Figure 1

BLOC strings for a sequence of three tweets (a reply, an original tweet, and a retweet) by the @NASA account. Using the action alphabet, the sequence can be represented by three word $p.T.r$ separated by dots. Using the content alphabet, it can be represented by these three words $(\mathit{Emt})(\mathit{mmt})(\mathit{mmmmmUt})$ enclosed in parentheses. See Sect. 3 for details

To demonstrate the effectiveness of the BLOC framework, we evaluate it on social bot and coordinated behavior detection tasks, together with previous methods specifically designed for each of the two tasks. To the best of our knowledge, BLOC is the only representation framework that has been applied to both tasks. Although methods based on BLOC use significantly fewer features than state-of-the-art methods —making them much more efficient— they yield better or comparable performance.

2 Related work

We can think of at least two dimensions to characterize inauthentic online behaviors: automation and coordination. Accounts could be automated but independent, or coordinated but closely managed by humans, or both automated and coordinated, and everything in between. Below we outline research aimed to detect inauthentic behaviors along these dimensions. Note that not all automated or coordinated behavior is necessarily inauthentic or malicious. For example, some self-declared bots are harmless or even useful; and some grassroots campaigns may use coordination to promote beneficial social movements.

2.1 Automation

The behavioral spectrum of social media account automation has human behavior at one end and bot-like behavior at the opposite end. Somewhere in between are “cyborgs” [20, 21], accounts that cycle between human and bot-like behaviors.

Various machine-learning methods have been proposed for identifying specific kinds of automated behavior. These methods typically utilize some combination of features such as social network structure, content/profile characteristics, and temporal patterns [2].

Multiple researchers have characterized authentic human behaviors online in ways that can inform the design of methods to distinguish them from behaviors generated by automated, algorithm-driven accounts. Wood-Doughty et al. studied one million accounts to explore how different demographic groups used Twitter [22]. This was based on the assumption that user behavior is reflected by indicators such as profile personalization, temporal information, location sharing, user interaction, and devices. He et al. provided a method for identifying five classes of behaviors on Twitter: individual, newsworthy information dissemination, advertising and promotion, automatic/robotic, and other activities [23]. Researchers have also studied human behavior across other social media platforms. Maia et al. represented YouTube users as feature vectors over a vocabulary consisting of number of uploads, videos viewed, channels visited, system join date, age, and so on [24]. They then clustered the users into predefined profiles such as small community member, content producer, and content consumer. Benevenuto et al. studied the online behavior of over 37 thousand users who accessed four social networks (Orkut, MySpace, Hi5, and LinkedIn) by analyzing their clickstream data [25].

On the other end of the automation spectrum are social bots [2]. A common theme of the literature is to build algorithms to distinguish bot-like and human accounts [16], which requires representing the account characteristics first. The rich information obtained from social media platforms makes it possible to describe accounts along many different dimensions. Depending on the types of the target accounts, existing methods use profile information [26], content [13, 27, 28], actions [17], social network [29], and temporal signatures [17].

Another common approach is to combine account characteristics from different dimensions in the same model [14, 18, 19, 30–32]. Botometer,² for example, is a publicly available supervised machine learning system that extracts over 1000 features from a Twitter account’s profile, content, sentiment, social network, and temporal activity.

Digital DNA (DDNA), proposed by Cresci et al. [27, 28], is the most similar method to BLOC. DDNA encodes each account as a pair of strings of symbols representing actions and content, respectively. It then considers accounts with long common substrings as bots. While BLOC languages similarly use sequences of symbols to encode actions and types of content, they differ significantly from DDNA conceptually and technically.

Conceptually, DDNA was designed for characterizing behaviors, especially automated ones. In contrast, the focus of BLOC is broader: modeling behaviors irrespective of the class of the account (bot, cyborg, or human) or intent (malicious or benign). This means BLOC can be applied to multiple tasks such as individual/group characterization, bot, and coordination detection as demonstrated in this paper.

There are also two crucial technical differences between BLOC from DDNA. The first has to do with language features capturing pauses and repetitions (see Sect. 3.1). Pauses enable studying a variety of behaviors (e.g., repetitive, dynamic, and bursty). For example, the absence of long pauses could be revealing of automated behaviors. Additionally, DDNA truncates repeated content characters, whereas BLOC content words can capture repetitions to emphasize different behaviors. Repetitions provide a means to weigh and identify important signals, which is crucial since not all aspects of behaviors are expressed equally. This can help identify accounts engaging in repetitive behaviors, such as long sequences of retweets, typical of certain inauthentic accounts.

The second important difference is between the signature-based method of DDNA and the vector-based approach of BLOC (see Sect. 3.2). BLOC languages represent behaviors with words that may capture distinct behavioral patterns. Accounts are thus represented as word vectors, allowing for similarity measures beyond string matching. Word representations are also important since accounts can change behaviors, as illustrated by the cyborg account in Fig. 2. Changes in behavior map to changes in BLOC words. This representation provides opportunities to study when accounts have been hijacked or repurposed.

2.2 Coordination

Malicious social bots evolve in sophistication over time, making them more effective and harder to detect. In some cases, it is not sufficient to study individual accounts. A group of inauthentic accounts can be coordinated by a single entity, whether their behavior are human-controlled or automated. These kinds of sophisticated deception can only be detected through observations at the group level [16]. This has led to multiple research efforts to detect malicious coordinated behaviors.

While individual bot detection aims to separate individual human and bot-like accounts, coordination detection involves clustering suspiciously similar accounts into groups [6]. Appropriate definitions of similarity measures are subjective and vary across different studies. A common choice is to focus on the temporal dimension, with the action time series of different accounts compared directly [33, 34] or modeled using temporal point processes [35]. Other similarity measures focus on duplicated or partially matched text [36, 37] or on shared retweets [38]. Some methods focus on specific components of the content, such as embedded links, hashtags, and media [6, 37, 39–41]. Account profile information can also be used to identify similar accounts [42]. Finally, it is possible to aggregate similarity measures based on different criteria [43].

These methods typically extract account features designed to target specific suspicious behavioral patterns [6]. The BLOC framework encodes behavioral information into features that can be used to calculate similarities without a predefined target behavior. As a result, BLOC languages are versatile and can be applied to characterize a broad spectrum of behaviors. We next provide an in-depth introduction to the BLOC framework.

3 Behavioral languages for online characterization

The central component of BLOC is a collection of two alphabets: actions and content. Each consists of a set of symbols that represent activities or traits. Collectively, these alphabets encode behaviors that can be utilized to build models for various tasks and platforms. The BLOC framework is in fact platform agnostic; similar alphabets can be easily adapted to, say, Instagram, Facebook, and TikTok.

BLOC languages have several parameters, shown in Table 1. Different combinations of values for these parameters correspond to different languages and representations. Below we discuss these parameters in detail, noting recommended values based on extensive experiments. In Sects. 4 and 5 we apply different BLOC representations to various tasks.

Table 1 BLOC language parameters

3.1 BLOC alphabets

Let us illustrate how to generate BLOC strings drawn from the alphabets for an arbitrary Twitter account @Alice. (Note that all symbols below could also be used for Instagram accounts, excluding the action symbol for resharing one’s own posts, since this action is not supported on Instagram.)

3.1.1 Action alphabet

The action alphabet includes two sets of action and pause symbols. An action symbol characterizes a single post by an account with a symbol as outlined below:

T::

Post message

P::

Reply to friend

p::

Reply to non-friend

π::

Reply to own post

R::

Reshare friend’s post

r::

Reshare non-friend’s post

ρ::

Reshare own post

For example, the string $Tp\pi R$ indicates that @Alice posted a tweet, then replied to a non-friend, followed by a reply to herself, and finally retweeted a friend.

The pause symbols characterize the pauses between consecutive actions. Pauses provide additional context for actions. For example, actions taken with very short (e.g., less than a second) or highly regular pauses could indicate automation [44].

Let us first define Δ as the time between two consecutive actions. Based on parameter $p_{2}$, we have two possible pause alphabets defined by functions that map Δ values to symbols. The function $f_{1}$ is defined as:

$$ f_{1}(\Delta ) = \textstyle\begin{cases} \text{no symbol} & \text{if $\Delta < p_{1}$} \\ . & \text{otherwise} \end{cases} $$

(1)

where $p_{1}$ is a session delimiter threshold. A session is thus defined as a maximal sequence of consecutive actions separated by pauses shorter than $p_{1}$. Sessions are important because they provide natural word boundaries for tokenizing BLOC words (see Sect. 3.2). We recommend using a value of a minute or less for $p_{1}$ in Eq. (1).

As an illustration, let us punctuate @Alice’s string of actions ($Tp\pi R$) with pause symbols using $f_{1}$ and $p_{1} = 1$ minute. Say that Alice pauses 2.5 minutes between the first tweet and the reply to a non-friend, then 50 seconds pass until her self-reply, and finally she waits 3 days before the final friend retweet. The resulting BLOC string would be $T.p\pi .R$, indicating three sessions whose boundaries are marked by the dots.

An alternative pause alphabet assigns different symbols to long pauses for better granularity. We discretize time into a logarithmic scale to represent a wide range of pauses, e.g., hours vs. days vs. weeks, by defining $f_{2}$ as:

$$ f_{2}(\Delta ) = \textstyle\begin{cases} \text{no symbol} & \text{if $\Delta < p_{1}$} \\ t_{h} & \text{if $p_{1} \leq \Delta < 1$ hour} \\ t_{d} & \text{if 1 hour $\leq \Delta < 1$ day} \\ t_{w} & \text{if 1 day $\leq \Delta < 1$ week} \\ t_{m} & \text{if 1 week $\leq \Delta < 1$ month} \\ t_{y} & \text{if 1 month $\leq \Delta < 1$ year} \\ t_{z} & \text{otherwise.} \end{cases} $$

(2)

Using the same example as above, @Alice’s string of actions using the $f_{2}$ pause symbols with $p_{1}=1$ minute would be $T t_{h} p \pi t_{w} R$.

3.1.2 Content alphabets

The content alphabet provides a lexical characterization of a post — whether it contains text, links, hashtags, and so on. Unlike the action alphabet, a single social media post can contain multiple content symbols from the following list:

t::

Text

H::

Hashtag

M::

Mention of friend

m::

Mention of non-friend

q::

Quote of other’s post

ϕ::

Quote of own post

E::

Media object (e.g., image/video)

U::

link (URL)

As an illustration, let us imagine that @Alice’s first tweet only contains text; her reply to a non-friend has two images and one hashtag; her self-reply mentions one friend and has one link; and finally she retweets a post that mentions a non-friend. The resulting content string depends on the $p_{3}$ parameter. If sessions are not used, each action corresponds to a separate content word: $(t)(\mathit{EEH})(\mathit{UM})(m)$. Here the contents of the reply to a non-friend (EEH) and of the self-reply (UM) are separated, even though they were part of the same session. Using sessions, we get $(t)(\mathit{EEHUM})(m)$. Note that parentheses separate content words, and the order of content symbols within a word is arbitrary and defined in the implementation.

3.2 BLOC vector models

A flexible representation used in many machine-learning tasks, including online bot detection and coordination detection, is obtained by mapping each data point (an account or behavior in our setting) to a point in a vector space. There are multiple ways to generate vector representations from BLOC strings. One approach would be to train a deep-learning model [45] such as word2vec [46] and embed BLOC words or sentences into dense feature vectors. However, such an abstract vector space would fail to benefit from the interpretability of BLOC symbols.

Alternatively, we can obtain a vector representation by first tokenizing BLOC strings into words and then using these words directly as vector space dimensions. Tokenization can be done using one of two methods, n-gram or pause, based on parameter $p_{4}$ (Table 1). The n-gram method generates tokens of fixed size n by sliding an n-sized window over the BLOC string. Using $n = 2$, we generate bi-grams resulting in a vocabulary of two-symbol words. For example, given the action string $Tp\pi .r$ and the BLOC content string $(t)(EH)(U)(mm)$ with $n = 2$, we obtain the set of words $\{Tp, p\pi , \pi ., .r, tE, EH, HU, Um, mm\}$.

The pause method uses pauses to break BLOC action strings into words of variable length. In addition to serving as word boundary markers, pause symbols are included in the vocabulary as single-symbol words. For content strings, individual posts mark word boundaries: all symbols in the same post form a single word. The symbols within each word may be sorted alphabetically depending on parameter $p_{5}$. To illustrate pause tokenization without sorting, given the same BLOC action string $Tp\pi .r$ and BLOC content string $(t)(EH)(U)(mm)$, we obtain the set of words $\{Tp\pi , \cdot, r, t, EH, U, mm\}$.

Pause tokenization often results in long words, for example, the 13-symbol word $\pi \pi \pi \pi \pi \pi TT\pi \pi \pi \pi \pi$ from the cyborg account in Fig. 2. Long words occur when the pauses between multiple consecutive actions are shorter than $p_{1}$, meaning that actions are performed in bursts, which often indicates automation. The distinction between, for example, rrrr and rrrrr is often not important, so instead of representing both as separate words in our vocabulary, we could truncate long words after a limit. For example, setting $p_{6} = 4$ would truncate characters that repeat four or more times. The words rrrr, rrrrr, and rrrrrr would all be replaced by rrr+.

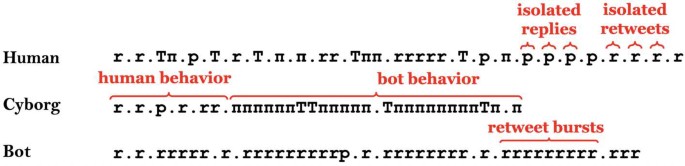

Figure 2

Illustrations of BLOC action strings ($p_{1} = 1$ minute) for a human, a cyborg, and a bot Twitter account illustrating some behavioral differences across these individuals. If strings are tokenized using pauses, the human account has the shortest words (average length 1.35 vs. 3.88 for the cyborg and 4.0 for the bot) and is dominated by isolated retweets and replies. The cyborg account — which we created to post threads of news updates — exhibits both human (isolated posts) and bot behavior (thread bursts). The bot account mainly generates retweet bursts

After tokenization, we can represent any account as a vector of BLOC words. In a vector model, each account is represented as a point $(w_{1}, w_{2},\ldots,w_{k})$ in a k-dimensional vector space where each dimension i corresponds to a word. We wish to define a weight $w_{i}$ that represents how well an account is described by i. The number of times $f_{i}$ that word i occurs in the BLOC representation of the account, known as term frequency (TF), is not very discriminative because some words, such as t (text), may be common across all accounts. Therefore the term frequency is multiplied by a second factor, called inverse document frequency (IDF), that captures how rare a word is across accounts. We use the TF-IDF weight [47] for account a defined as follows:

$$ w_{i}(a) = f_{i}(a) \biggl(1 + \log \frac{D}{d_{i}} \biggr) $$

(3)

where $d_{i}$ is the number of accounts with word i and D is the total number of accounts. Finally, the vectors can be used to build bot or coordination detection systems.

4 Discriminative power of BLOC

The BLOC framework lets us study behaviors at different levels of granularity. We may study different classes of accounts, such as humans vs. bots. Or we might study different types of individual accounts within a class, for instance, a political vs. an academic human account or a spam bot vs. a self-declared bot. In this section we demonstrate such a multi-resolution approach by characterizing the behavior of individual accounts and groups of accounts, both when their class labels are known and unknown.

4.1 Characterizing individuals and groups

Figure 2 illustrates the behavioral differences between three individual accounts: a human account belonging to a journalist; a cyborg account used by one of the authors to post news updates, either manually or using a software script; and a spambot account identified by Mazza et al. [17]. These accounts are represented by their respective BLOC action strings. We observe multiple differences. First, when we tokenize the strings into words separated by pauses, the human account has the shortest words, with mostly one-symbol words (e.g., r, T, p). This captures the fact that humans tend to rest between posts. Second, the cyborg account exhibits a human substring with shorter words, followed by a bot substring created in a burst. Third, the bot account tends to amplify content with retweet bursts (e.g., rrrrrrrrr) rather than creating new content.

Let us shift our focus to studying groups of accounts. Figure 3 presents a Principal Component Analysis (PCA) of the BLOC TF-IDF vectors of equal numbers of bot and human accounts from six different datasets (see Table 2). We observe that the bot and human accounts in the left column of the figure express more distinct behavioral patterns than those in the right column. Consequently, accounts in the left column have fewer words in common and are easier to separate. For example, while both bot and human accounts in Fig. 3A tweet text-only (t) content, the bot accounts more often include hashtags (Ht). In Fig. 3C, bots amplify content with burst of retweets (rrr, rrr+) unlike humans who create original content (T). In Fig. 3E, bots share more external links (U) while humans tend to engage in conversations and commentary (p, q).

Figure 3

Two-dimensional PCA projections of BLOC TF-IDF vectors of accounts from six datasets that include both humans and bots (see Table 2): (A) cresci-17, (B) botometer-feedback-19, (C) cresci-rtbust-19, (D) cresci-stock-18, (E) varol-17, and (F) gilani-17. From each of these datasets, we select an equal number of bot (orange) and human (blue) accounts. We use all the accounts in the minority class, and sample an equal number of accounts from the majority class. The Venn diagrams show the top five pause-delimited BLOC words for the bot and human accounts shown

Table 2 Annotated datasets used in our bot detection evaluation. For each dataset, we report the reference describing it and the number of accounts that are still active at the time of the present evaluation

In Fig. 3B, bots and humans express similar behavioral traits: both classes have the same five top words. In Fig. 3D and F, bots and humans share four of their five top words. The bot accounts are more likely to amplify content (rrr) and link to external websites (Ut) in Figs. 3D and F, respectively, while their corresponding human accounts are more likely to engage in conversations (p). In summary, the figure suggests that the behaviors displayed by the humans tend to be consistent across datasets, whereas the bots have distinct behaviors based on the purpose for which they have been created. These findings are consistent with prior analysis based on ad-hoc features [18]. The BLOC representation is sufficiently powerful to capture significant differences between these behaviors.

4.2 Behavioral clusters

When behavioral class labels are unavailable, we can characterize online behaviors in an unsupervised way, using BLOC representations to cluster accounts according to behavioral similarity.

We analyzed tweets collected between January 4 and September 30, 2021 from the CoVaxxy project,³ which studies how online misinformation impacts COVID-19 vaccine uptake [11]. The dataset [50] consists of over 200 million English-language tweets about COVID-19 and vaccines, posted by over 17 million accounts. The tweets were collected with 76 keywords and hashtags covering a variety of neutral (e.g., covid), pro-vaccine (e.g., getvaccinated), anti-vaccine (e.g., mybodymychoice), and conspiratorial (e.g., greatreset) topics.

Given the large number of accounts present in the dataset and the quadratic cost of pairwise comparison, we focused on the one thousand most active accounts each month. We based our definition of activity on the number of days in which an account posted tweets; to break ties (especially for accounts active every day), we used the total number of tweets an account posted during the collection period.

We applied a three-step, network-based method to identify clusters of accounts with highly similar behaviors. First, we generated BLOC TF-IDF vectors for each account using pauses to tokenize words, without sorting symbols, and truncating words ($p_{6} = 4$). Second, we computed the cosine similarities among the 1000 vectors. We built a network by linking only nodes (accounts) with similarity of at least 0.98 and removing singletons. This threshold ensures a focus on accounts with a suspiciously high level of similarity. Third, we applied the Louvain method to identify communities [51].

This procedure was applied every month (January – September) to produce nine behavioral similarity networks consisting of clusters of accounts with highly similar behaviors. Figure 4 visualizes 24 of the 163 identified clusters. In the figure, a single dot represents a cluster positioned on axes representing its mean variety of behavior and mean automation score. For a single account, we measured its variety of behavior by the entropy of its BLOC string (before tokenization). We estimated account automation by the fraction of times the account posted using the Twitter API. A user has to create an app in order to use the Twitter API, and Twitter data includes a “user-agent” that identifies the app. Some user-agent values correspond to Twitter native apps (TweetDeck, Twitter for Advertisers, Twitter for Advertisers (legacy), Twitter for Android, Twitter for iPad, Twitter for iPhone, Twitter for Mac, Twitter Media Studio, Twitter Web App, and Twitter Web Client). While software could in principle be written to control native apps, we assume the vast majority of these apps are operated manually. Similarly, we assume non-native apps indicate the use of the Twitter API and thus likely automation, even though some could be operated manually. The entropy and automation scores are averaged across the accounts in each cluster. The clusters in Fig. 4 are well separated along the automation axis, suggesting a robust distinction between human and bot accounts.

Figure 4

Mean variety of behavior vs. mean automation (see text) for 24 communities of accounts with highly similar behaviors. Each community is represented by a dot, colored according to manual classification (see text). A few selected communities are highlighted by visualizing the corresponding subnetworks, with node size and darker color representing degree and tweet count, respectively

We manually inspected the clusters in Fig. 4 to describe the dominant behaviors, summarized in the groups below. Each cluster number has a suffix indicating the month when it was observed. All the clusters in each group have the same color in Fig. 4.

• Giant connected component (blue): Cluster 3-Sep includes accounts with low automation scores and high variety of behaviors. These are likely legitimate users who mostly retweet and occasionally post tweets, with normal pauses. Similar large components were present on each month.

• Vaccine availability/appointment bots (orange): Cluster 12-Apr includes 12 self-identified bot accounts that track the availability of vaccines and appointments in various US cities, such as @DCVaxAlerts and @FindAVac_Austin. These accounts posted messages such as “New available appointments detected! – Provider: CVS Pharmacy – City: Alamo Heights – Registration link: www.cvs.com/immunizations/covid-19-vaccine...” They created long bursts of tweets consisting mostly of URLs and text. Overall, these accounts posted the most content. Similarly, Cluster 17-Jan includes two vaccine appointment bots (@kcvaccinewatch and @stlvaccinewatch) that created tweet threads. Cluster 13-Jul includes @CovidvaxDEL, a vaccine appointment status bot for New Delhi, India; and @ncovtrack, a bot that posted vaccine statistics for various countries.

• News posting accounts (green): Clusters 14-Apr, 16-Jan, 20-Apr and 22-Feb include many accounts that mostly post tweets linking to news websites hourly, such as @canada4news and @HindustanTimes. Some accounts are owned by international news organizations such as @Independent and @guardian.

• Content amplifying, likely bot accounts (purple): Cluster 4-May includes a pair of accounts that create no content; they retweet mostly the same tweets repeatedly. Cluster 19-May includes self-identified bots created by the same self-identified developer. These bots, @EdinburghWatch and Glasgow_Watch, retweet random content from Glasgow and Edinburgh, respectively.

• Misinformation sharing and local news accounts (white): Cluster 24-Feb includes @USSANews owned by ussanews.com, a misinformation website according to factcheck.org. This account posted links with headlines such as: “31 Reasons Why I Won’t Take the Vaccine.” The same cluster includes @abc7newsbayarea, the account of a legitimate local news organization. Both accounts mostly post multiple tweets with images separated by pauses under an hour.

• Spam bots (red): Clusters 10-Mar, 11-Apr, and 23-Aug include accounts that post repeated content. The accounts in Cluster 10-Mar repeatedly linked to their respective blogs with exactly seven or thirteen hashtags. Cluster 11-Apr posted messages soliciting others to follow a specified account. The two accounts in Cluster 23-Aug posted the same pro-vaccine messages repeatedly, 133 and 72 times respectively.

• Coordinated bots (black): The three accounts in Cluster 21-May created no content; they retweeted the same account exactly 1004 times each. During the first week of May 2021, the first 44 characters of their BLOC strings matched. Similarly, accounts in Cluster 15-May did not create content but always retweeted the same collection of multiple business accounts advertising various merchandise. Cluster 18-Mar includes a pair of accounts that retweeted one another 313 times.

• Various low automation accounts with different stances on vaccine (yellow): Finally, Fig. 4 also features clusters of accounts with pro-vaccine (Clusters 1-May and 2-Jan), anti-vaccine (Clusters 5-Mar, 6-Apr, 7-Mar, and 8-May), or a mixture of both sentiments (Cluster 9-Jun).

5 Evaluation

In this section we evaluate the performance of BLOC models on bot and coordination detection tasks on Twitter. BLOC code and datasets used in our experiments are available [52].

5.1 Bot detection

The bot detection task involves separating accounts that are likely operated by human users from accounts that are likely automated. This is a challenging task, as behaviors of both classes of accounts are heterogeneous and time-evolving.

5.1.1 Methods

The BLOC language parameters used for the evaluation are as follows: $p_{1} = 1$ minute, $p_{2} = f_{2}(\Delta )$, and $p_{4} = \text{bi-gram}$ (Table 1). The other parameters are not applicable to bi-gram tokenization. We extracted BLOC action and content bi-grams for each annotated Twitter account. This resulted in a set of 197 bi-grams. These bi-grams can be used as features within any machine learning model. We obtained TF-IDF feature vectors for each account and used them to train a random-forest classifier.

We compared the performance of the BLOC model to three baseline models: Botometer-V4 (the current version of Botometer at the time of writing) [18] and two DNA-based methods, namely DDNA [27, 28] and DNA-influenced [53]. The latter were selected because they share some similarities with BLOC.

Botometer-V4 utilizes 1161 different features that can be grouped into six categories that focus on different account characteristics. For example, user profile features are extracted from the user profile, like the numbers of friends and followers. Temporal features measure temporal patterns of the posts, such as frequency and times of day. In the deployed system, different classifiers in an ensemble are trained on different accounts types, and then these classifiers vote to obtain the final bot score [18]. Here instead, to compare the representation power of BLOC vs. Botometer features with all other things being equal, we trained a single random-forest classifier with the same features used to train Botometer-V4.

Digital DNA classifies accounts as bots if they share long sequences of symbols representing actions and content. Cresci et al. [28] provided their Python code [54], which wraps a C implementation for the Longest Common Substring (LCS) algorithm. We modified the code to implement the method described by the authors. The method yields a maximal common substring length from the training data. This length is then used to determine a set of accounts in the test data that share a maximal common substring of the same length. These accounts are classified as bots. We finally apply cross-validation to evaluate the classifier.

The DNA-influenced bot classifier is based on the rationale that bot accounts are more likely to be similar to each other, compared to human accounts. The method relies on a formula to calculate a probability distribution for a given string, and on the symmetrized KL divergence to calculate the distance between the probability distributions associated with two strings [55]. In this way, the method calculates the distance between the DDNA strings corresponding to two accounts [53]. To implement this method, we partitioned the bot accounts in the training dataset into groups of 50, similar to Gilmary et al. [53]. For each group, we calculated the average distances across all pairs of accounts in the group. The maximum average distance across all the groups was then used as a decision threshold: any two accounts in the test dataset were classified as bots if their distance was less than or equal to the decision threshold.

5.1.2 Datasets

Our evaluation datasets (Table 2) consist of 32,056 Twitter accounts labeled as bots and 42,773 accounts labeled as humans, all selected from the bot repository.⁴ These accounts were collected and labeled by multiple researchers between 2017–2019 [19]. To eliminate a potential bias in the comparative analysis that might result from the class imbalance, we took the union of all datasets but used a random sample of 32,056 accounts from the majority class (humans).

5.1.3 Results

We evaluated the BLOC model, Botometer, three variants of Digital DNA (b3_type, b3_content, and b6_content) [28], and DNA-influenced by predicting bot and human labels, all on the same annotated dataset in Table 2. We computed precision, recall, and $F_{1}$ from 5-fold cross validation.

As reported in Table 3, Botometer-V4 slightly outperformed the BLOC model on the $F_{1}$ metric. However, the BLOC model used significantly fewer features. DNA-influenced outperformed Digital DNA, even though it labeled all accounts as bots.

Table 3 Precision, recall, and $F_{1}$ for different bot classifiers using 5-fold cross-validation, along with numbers of features. The best values for each metric are shown in bold. DNA-influenced classifiers produced recall of 1.0 because they always predicted that all account were bots

5.2 Coordination detection

Multiple nation states utilize social media for information operations that target their citizens, foreign nationals, organizations, etc. Twitter defines information operations as a form of platform abuse, which involves artificial amplification or suppression of information or behavior that manipulates or disrupts the user experience.⁵ Twitter deletes the public tweets of accounts engaged in information operations, but publishes datasets containing these tweets.

Let us use the term driver to refer to an account engaged in some information operation. Drivers may employ tactics such as spamming, impersonation, obfuscation, and/or targeting of individuals or communities. We consider all these behaviors coordinated but do not distinguish among them. Our task is to separate the drivers from regular (control) accounts tweeting about the same topics.

5.2.1 Methods

Coordination detection is typically based on unsupervised learning, namely, identifying clusters of accounts with suspiciously similar behaviors. Our coordination detection method and evaluation are more related to supervised learning, as described below. BLOC words express behavioral traits. We generated TF-IDF vectors as described in Sect. 5.1.1 and then calculated the similarity between two accounts via the cosine between their two vectors.

We compared the BLOC model to three baseline methods, which make different assumptions about the behavioral traits that may be shared among coordinated accounts [6]: hashtag sequences (Hash), activity (Activity), and co-retweet (CoRT). The hashtag baseline method identifies coordinating accounts by finding those that mostly use the same sequences of hashtags (e.g., the same hashtag 5-grams). The activity method looks for accounts that are synchronized in the times when they post tweets: accounts that often tweet or retweet within the same time window are considered suspicious. Similar to Pacheco et. al. [6], we considered accounts that consistently posted tweets within 30-minutes from one another to be suspicious. The co-retweet method identifies coordinating accounts by finding those that mostly retweet the same sets of tweets. We generated TF-IDF vectors of hashtag 5-grams, of activity time intervals, and of retweeted tweet IDs, as described by Pacheco et. al. [6]. For all baselines, the cosine between TF-IDF vectors was used to calculate similarity.

We also evaluated a combined method. For a pair of accounts, the combined method takes the maximum among four cosine similarity values computed with the BLOC model and the three baselines.

We employed a leave-one-out classification in conjunction with k-nearest-neighbors (KNN) classifiers to label an account as a driver or non-driver. This approach is “supervised” in the sense that KNN infers the unknown label of an account using the known labels of its neighbors. Specifically, for the mixture of driver and control accounts, we computed pairwise cosine distance using their BLOC (or Hashtag, Activity, CoRT) vectors. For each account, we predicted its label to be the majority class from all its k nearest neighbors. We report the maximum $F_{1}$ obtained across k values ($k = 1, \dots , 10$) to compare the five methods.

5.2.2 Datasets

Twitter published over 141 information operation datasets [56]. These datasets include tweets by drivers across 21 countries, during different time periods between 2008 and 2021. To ensure a fair assessment of the classifiers for detecting information operation drivers, we built control datasets that include tweets by accounts not engaged in information operations, but who posted about the same topics around the same time. For each information operation, we extracted all the hashtags used by the drivers. Then we used these hashtags as queries to Twitter’s academic search API,⁶ which does not impose date restrictions. We extracted accounts that posted tweets on the same dates and with the same hashtags as the drivers. Finally, for each of these accounts, we reconstructed their timelines by extracting a maximum of 100 tweets posted on the same dates as the drivers. We were able to create control datasets for 36 information operations, as shown in Table 4. These represent 18 of the countries and the entire time period.

Table 4 Selected information operation. We list life spans, the number of weeks used for evaluation (since the start of the information operations), and the counts of drivers and control accounts active during the evaluation weeks. Note that the evaluation weeks are not necessarily contiguous

Some information operations lasted a few months (e.g., China_3 in Table 4), others over five years (e.g., Iran_7 in Table 4). Therefore, we could run the experiment of detecting drivers for different time periods (e.g., first year, last year, all years). From the perspective of mitigation, we followed the principle that it is desirable to detect drivers as early as possible, with as little information (tweets) as possible. We believe it is more difficult to detect drivers early, since sufficient tweets with coordination signals might be absent.

Based on the above principle, we ran each experiment by incrementally adding two weeks of data until the end of the first year in which at least 10 drivers were observed, or the end of the campaign — whichever occurred first. In other words, the first instance of our experiment was run on two weeks of data, the second on four weeks of data, and so on. The use of increasing evaluation intervals is meant to explore how accuracy depends on the amount of data accumulated. For each coordination detection method, we generated vectors corresponding to all driver and control accounts active in each information operation and evaluation interval. Table 4 reports on the full evaluation periods and numbers of driver and control accounts in our datasets.

5.2.3 Results

Figure 5 plots the $F_{1}$ values of the best-performing classifiers for a subset of information operations. The best KNN classifier is the one with the k value ($k = 1, \dots , 10$) yielding the maximum $F_{1}$. The x-axis for each plot represents the number of evaluation weeks, while the y-axis represents the $F_{1}$ score of the best classifier. The information operations are ordered in descending order of their respective combined F1@Week 10 score, to capture the difficulty of detecting their drivers. The combined F1@Week 10 score of an information operation is the $F_{1}$ score calculated with 10 weeks worth of data (F1@Week 10) using the combined method. Table 5 outlines the F1@Week 10 scores for all information operations.

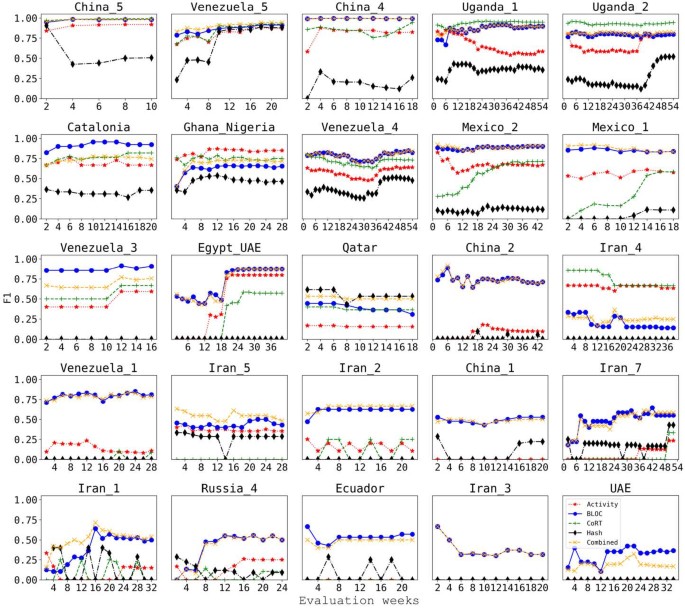

Figure 5

$F_{1}$ scores of the best-performing classifiers for detecting information operation drivers for the subset of campaigns with at least 10 weeks worth of data. The weeks displayed on the x-axis represent those in which the drivers were active (evaluation weeks); they are not necessarily contiguous. The plots are ordered in descending order of $F_{1}$ score calculated at week 10 using the combined method

Table 5 $F_{1}$ scores of BLOC and baseline classifiers for the detection of information operation drivers, calculated with data from the first 10 weeks of each campaign (F1@Week 10). For campaigns with less than 10 weeks of data, the entire dataset was used. Information operations are sorted by the $F_{1}$ score of the combined method (combined F1@Week 10). The best method for each campaign is shown in bold. Note that $F_{1}=0$ when the similarity signal used by a classifier cannot be observed in the behavior of a particular campaign’s drivers. No co-retweets were observed between any pairs of drivers in China_1

According to Fig. 5 and Table 5, the BLOC model outperforms the baselines in most campaigns. The drivers from information operations originating from China (e.g., China_4 and China_5) were the easiest to detect; the $F_{1}$ scores for all coordination detection methods except Hash were above 0.9. The hardest drivers to detect were those from the UAE information operation. We also note in Fig. 5 that in some campaigns (Venezuela_4, Venezuale_3, and Egypt_UAE), the accuracy of different methods improves in a correlated fashion with more training data. This suggests that drivers display multiple coordination signals simultaneously. Yet, having more data does not necessarily imply higher accuracy in detecting drivers. In several campaigns there is no clear temporal trend, and in a few cases (e.g., Iran_4 and Iran_3) adding more data hinders detection. This suggest that drivers may change their behaviors and become harder to detect as a result.

Figure 6 compares the performance of BLOC and the three baseline coordination detection methods. The x-axis represents the mean $F_{1}$ and the y-axis represents the mean number of features of all classifiers, across all information operations. Both values were calculated with data from the first 10 weeks of the information operations. The BLOC classifiers outperformed all baselines in the coordination detection task with a mean $F_{1}=0.659$ with the least number of features (108). The combined classifiers had a similar mean $F_{1}=0.658$, but employed the largest number of features (5869).

Figure 6

Mean number of features vs. mean $F_{1}$ of BLOC and four baseline classifiers for detecting drivers across information operations, estimated with data from the first 10 weeks of each information operation’s lifespan

6 Discussion

In response to the far-reaching threats posed by influence operations on social media, researchers developed methods that target specific kinds of malicious behaviors. The effectiveness of some of these — which mostly depend on hand-crafted features — is however temporary since malicious actors evolve their tactics to evade detection. In this paper, we proposed BLOC, a language framework that represents the behavior of social media users irrespective of class (e.g., bot or human) or intent (e.g., benign or malicious). BLOC words map to features derived in an unsupervised manner. We note that the BLOC framework does not make feature engineering irrelevant, in fact one could engineer features using BLOC.

Although BLOC is a platform-agnostic framework, we demonstrated its flexibility through two real-world applications on Twitter. In the bot detection task, a BLOC model performed better than similar methods (Digital DNA and DNA-influenced) and comparably to a state-of-the-art method (Botometer-V4), with a much lower number of features.

It is not straightforward to attribute the BLOC improvement over DDNA because the two methods are different in terms of both language features and machine-learning algorithms — vector-based versus signature-based models. To tease apart these two contributions of the BLOC framework, we evaluated a hybrid method using the same vector representation and machine-learning model as in BLOC but in conjunction with the DDNA language. In other words, both BLOC and DDNA strings were tokenized into bi-grams, and then TF-IDF vectors were classified with a random forest model. BLOC slightly outperformed the hybrid method (precision 0.879, recall 0.851, $F_{1}$ 0.865). The bulk of the improvement can therefore be attributed to the higher recall provided by the vector-based classifier over the signature-based approach. The language features distinguishing BLOC and DDNA representations — pauses and repetitions — also provide useful signals in discriminating between automated and human accounts across a variety of datasets.

In the coordination detection task to identify the drivers of information operations during the early stages of their life span, a BLOC model outperformed baseline methods. The performance of all classifiers varied across information operations, which highlights the heterogeneity of the driver behaviors. This is consistent with Twitter’s reports, which reveal that drivers include humans, automated accounts, coordinating accounts, and so on [57, 58]. So it comes as no surprise that the drivers of some information operations are easier than others to detect.

We also compared the performance of all classifiers on information operation datasets extracted from the last weeks of the life spans of the drivers — right before they were detected by Twitter. The average $F_{1}$ scores of all classifiers increased significantly (by 25–101%), suggesting that Twitter detected the drivers when their behaviors became more conspicuous. The activity method slightly outperformed the BLOC model when the evaluation was run during the last weeks of a campaign, with mean $F_{1}=0.855$ vs. 0.824, albeit using 1680 vs. 116 features. This suggests that synchronization is a strong signal for platforms to identify coordinated campaigns. For example, the activity method failed to identify the drivers of the Egypt_UAE information operation based on early data ($F_{1}=0$), but succeeded at the end ($F_{1}=1$). By contrast, the BLOC model achieved $F_{1}=0.444$ based on early data and $F_{1}=0.978$ at the end.

Collectively, these results indicate that BLOC models are versatile, effective, efficient, and applicable to multiple tasks. Also importantly, they indicate that one can achieve promising results in bot and coordination detection tasks without accounting for semantics that can be extracted from content.

We must note, however, that since BLOC representations do not capture specific content or contextual information, they may not be applicable to a variety of tasks that require a semantic understanding of the content, such as user stance detection and ideology prediction. This means that a pair of accounts on opposite ends of the political spectrum (e.g., @HuffPost and @FoxNews) could share similar BLOC words since BLOC strips away semantics such as ideology, instead focusing on behavior (e.g., original content creation). Therefore, future directions for this work include augmenting the BLOC framework to capture semantic information.

The development of new techniques such as BLOC for identifying malicious behavior could trigger changes in tactics by “puppet masters” to evade detection. We argue that even though this is possible, the introduction of BLOC could raise the bar for malicious social media accounts to appear authentic, discounting the benefits of automated tactics such as flooding and coordination.
